Bronze Direct ATX3.1 PSU

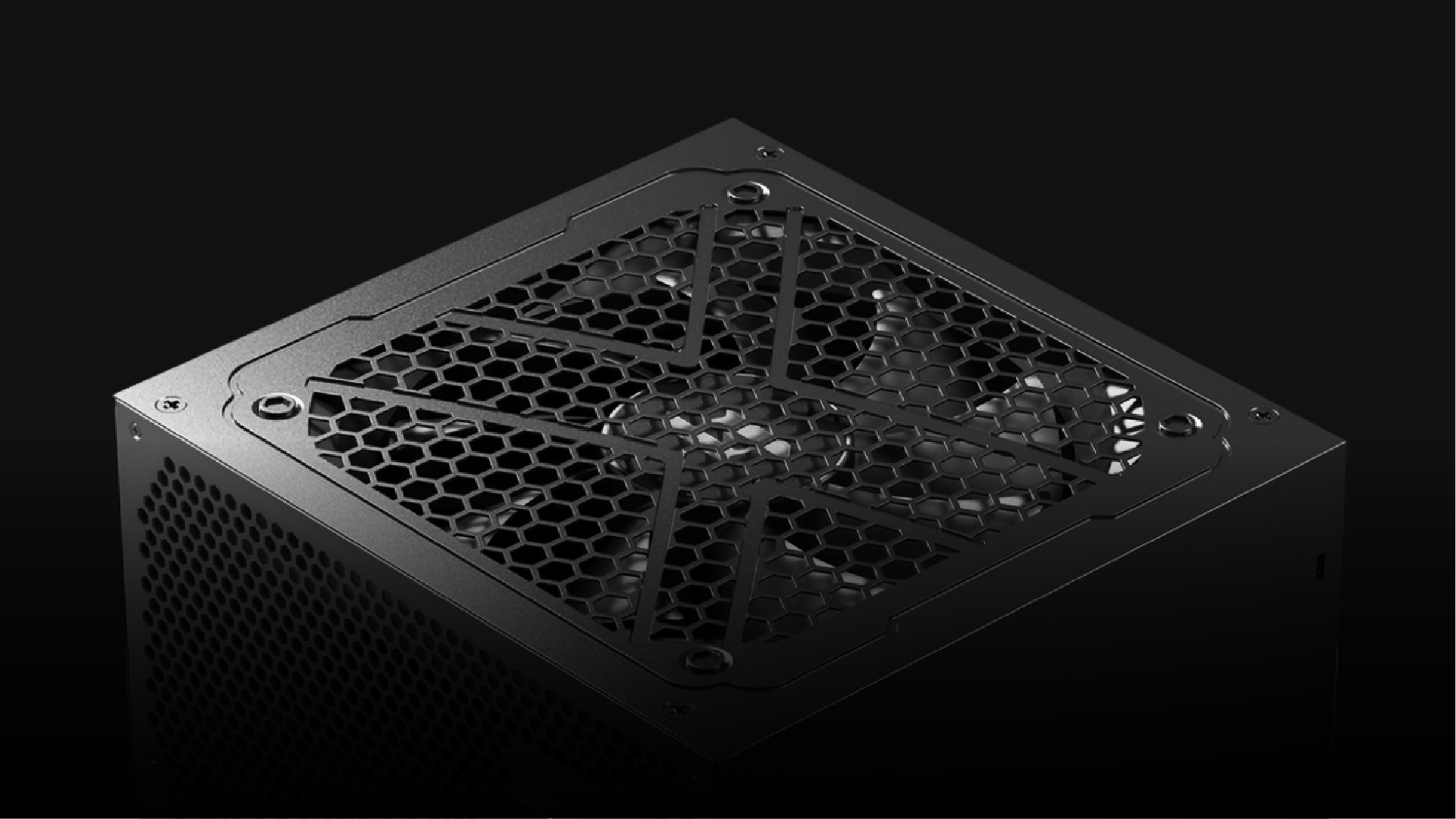

MAX P850B
XERON Max PB-Series 850W ATX 3.1 PSU delivers stable power with all-Japanese capacitors, pure copper cables, long-life cooling, and full safety protections for modern gaming systems.• Active PFC+Double forward+DC to DC topology.• Full Intel ATX 3.1 supporting 200% system and 300% GPU power excursions.• 100% all-Japanese capacitors (Rubycon, NCC, Nichicon).• 100% pure copper output cables for stable high-load power delivery.• Long-life silent fan rated at 40,000 hours MTBF at 40 °C.• Wide input voltage support: 180-264V full load, transient support down to 160V.• IEC 62368-1:2018 compliant, TÜV SÜD certified, official 80 PLUS Bronze efficiency.• protection features via 16-pin IC, plus embossed cables and
...

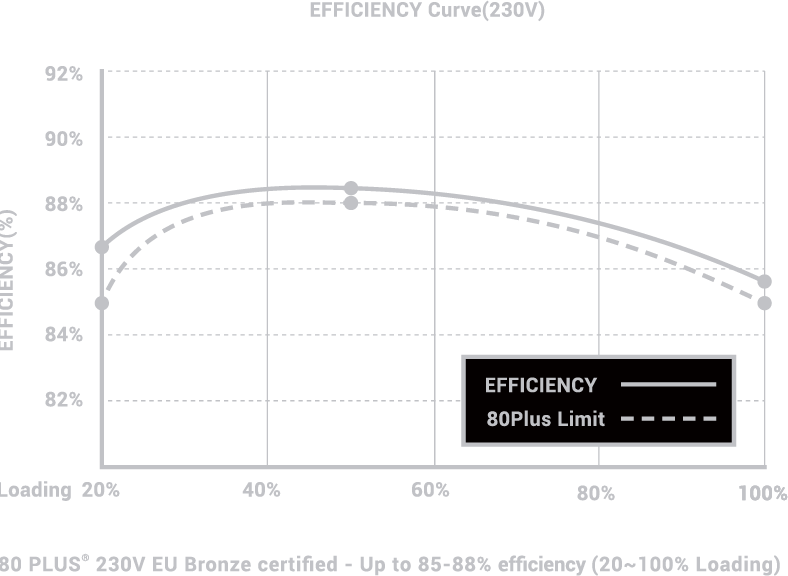

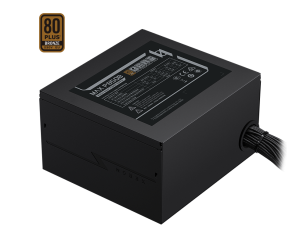

80 PLUS RBRONZE CERTIFIED
Verified efficiency for optimized power con-sumption, reducing heat and operational costsfor consistent gaming performance.
FULLY COMPLIANT WITH INTEL ATX3.1 STANDARD
Engineered to handle transient power spikes of next-generation GPUs, supporting up to 200% total system power excursion and 300% GPU transient load.
100% ALL-JAPANESE CAPACITORS
Built exclusively with top-tier brands (Rubycon, NCC, Nichicon) for superior reliability and long-term stability.

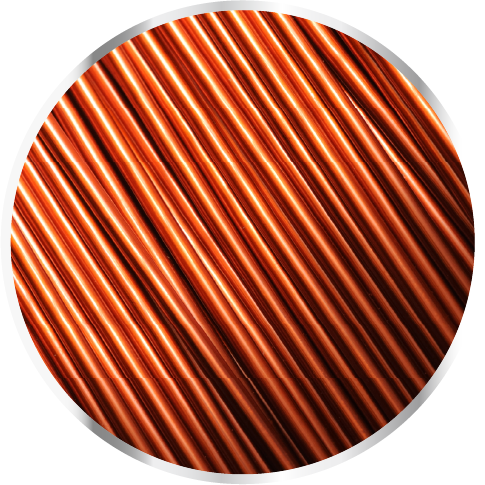

PREMIUM 100% PURE COPPER CABLES
100% copper output cables with embossed texture for easier routing and a clean, professional look.

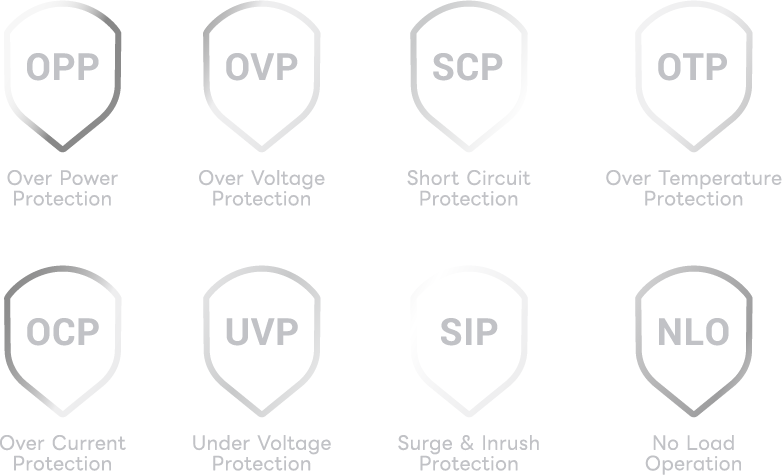

COMPREHENSIVE PSU PROTECTION SUITE
Comprehensive PSU protection suite including OVP, UVP, OCP, OPP, SCP, OTP, SIP, and No Load Operation.
Active PFC+Double forward
Advanced power topology for stable and efficient per-formance.
Genuine Safety Certification
Verified quality that meets strict altitude (5,000m) and temperature (40°c) standards.
16-Pin Master Protection IC
The "brain" controlling 8 critical safety functions (OPP,OCP, SCP, etc.).
DC-to-DC Conversion Circuit
Provides independent and precise voltage output for all system components.

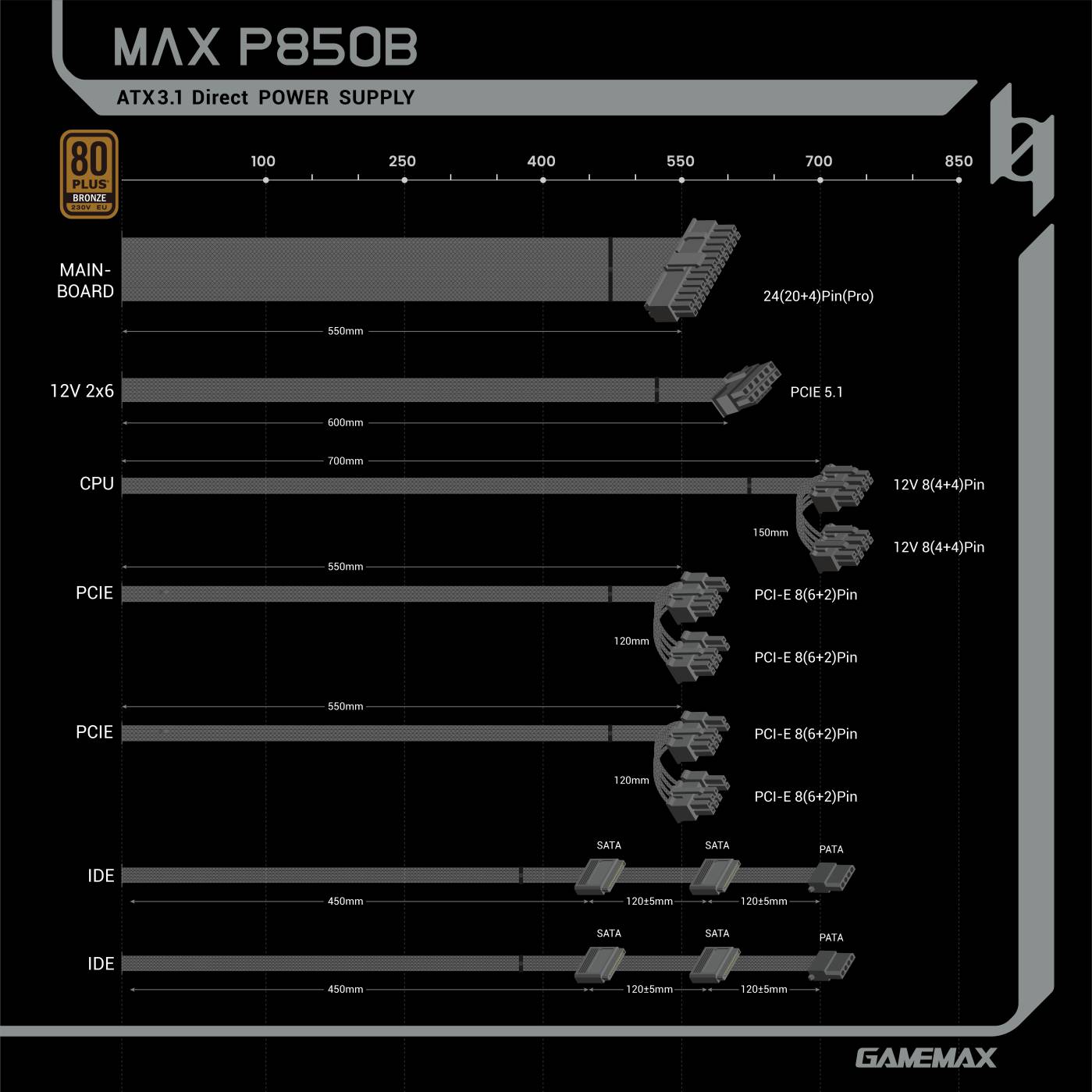

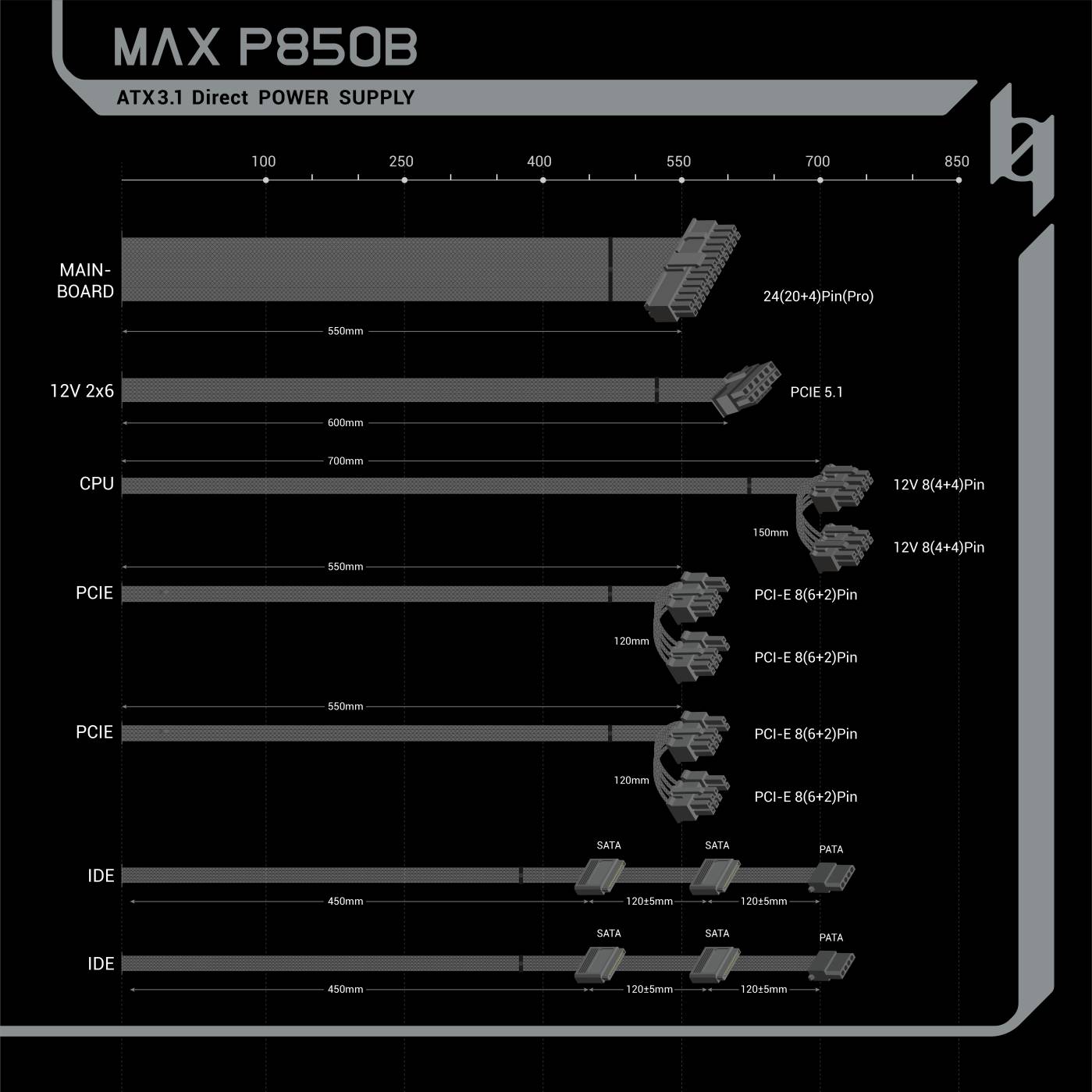

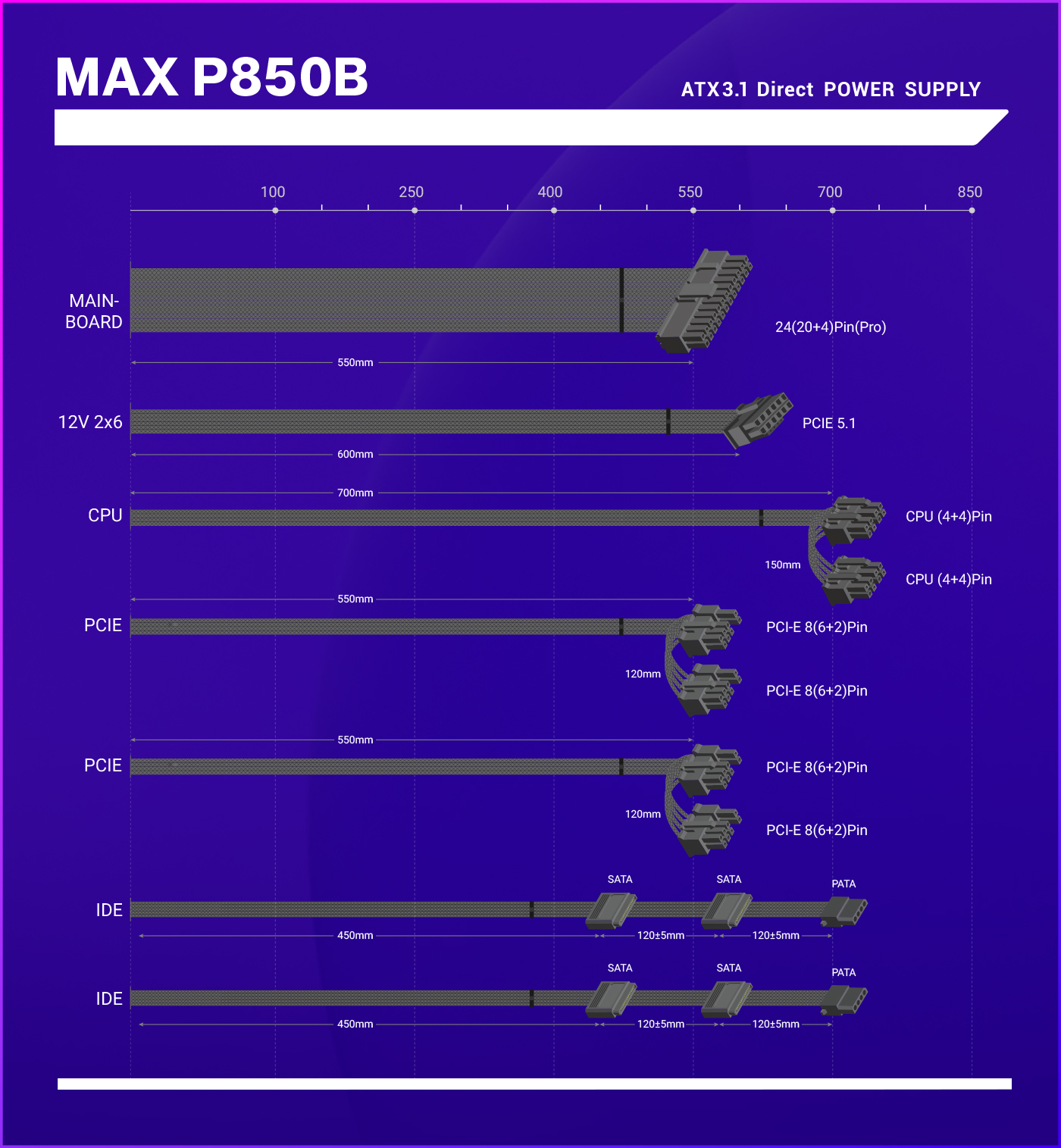

COMPATIBILITY AND SIZE
PSU SIZE
The product displays on the above pages are for reference only, may have
slight differences from the actual products, and the actual products shall
prevail in all cases.
| Type | ATX12V V3.1 |
| Product Net Weight | |
| Product Dimensions | 140×150×86mm |
| Efficiency certification | 80Plus 230V EU Bronze |
| Fan Size | 120×120×25mm |
| Fan Bearing | Hydro Bearing |
| Topology | Active PFC+Double forward+DC to DC |
| Capacitors | Full Japanese Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms 80% load |
| Efficiency | ≥88% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40℃ |
| Regulatory | CE/CCC/TUV-SUD/RCM |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/Triman/中国RoHS |
| Warranty | 3Years |
