01
FULLY ILLUMINATED CPU BLOCK
5-sided stunning ARGB cold head with even, glare-free lighting effects.

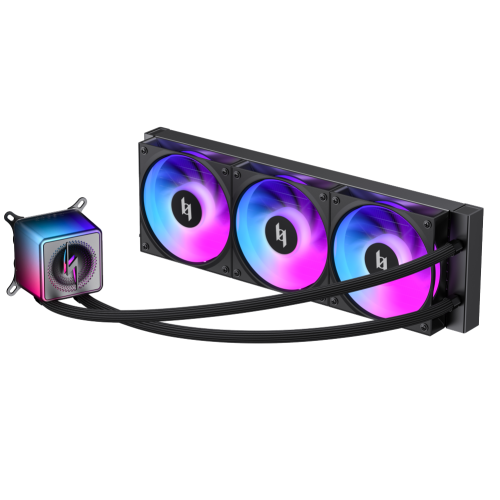

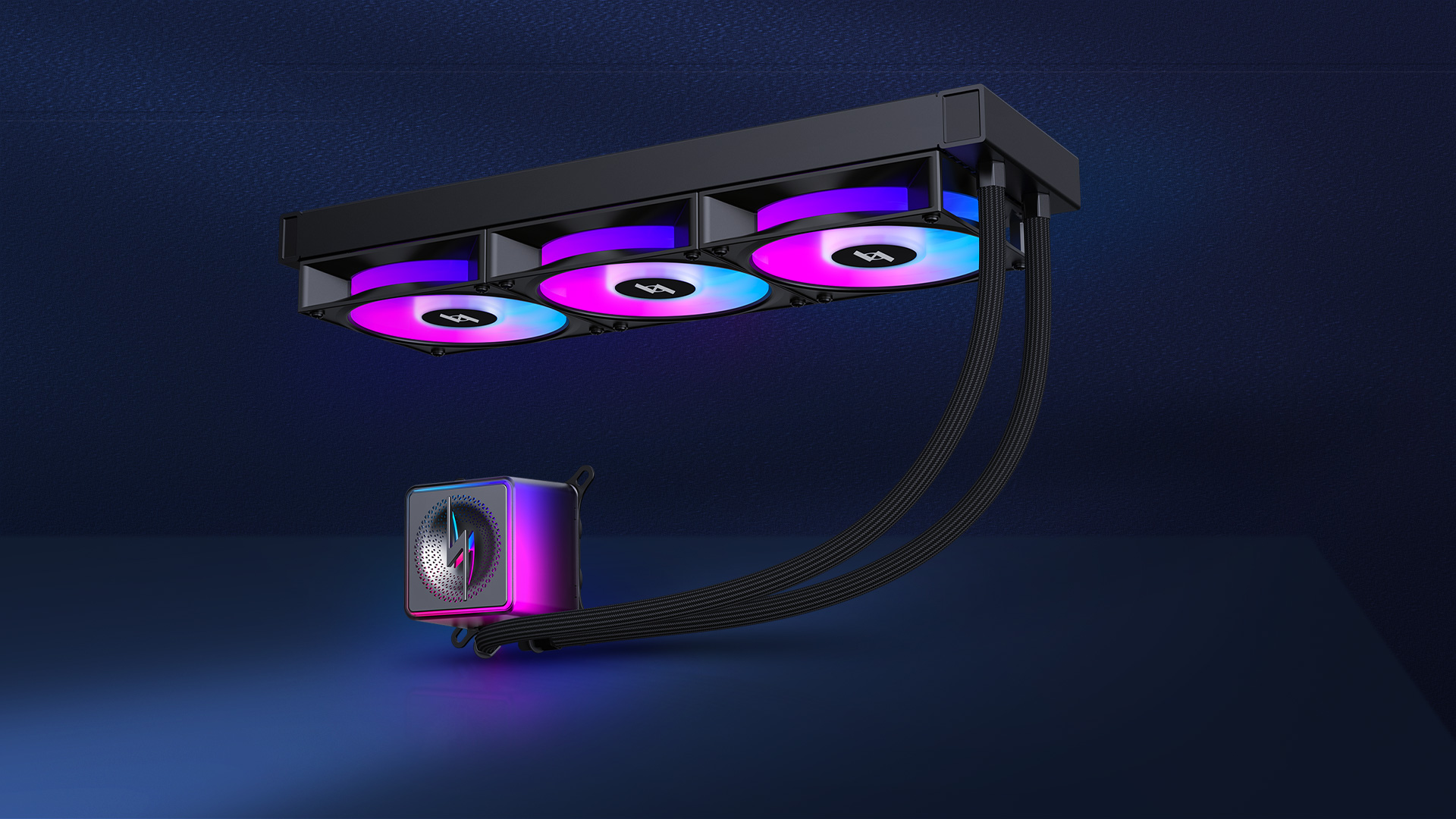

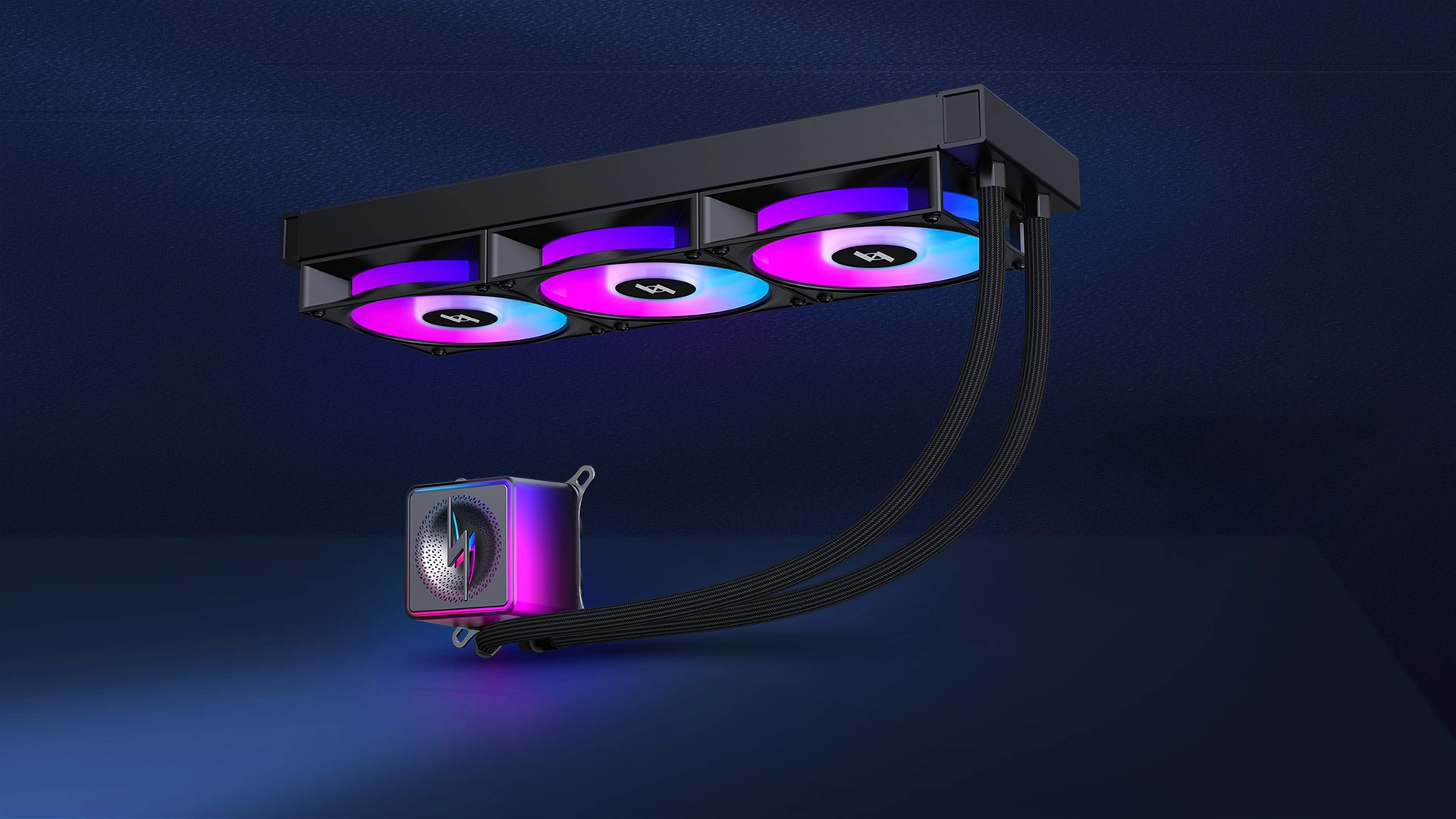

NEX L360 ARGB BK
360mm AIO CPU Liquid Cooler
02
POWERFUL QUIET PUMP
Built with a 3-phase 6-slot high-efficiency pump motor that generates higher torque and lower vibration.
03

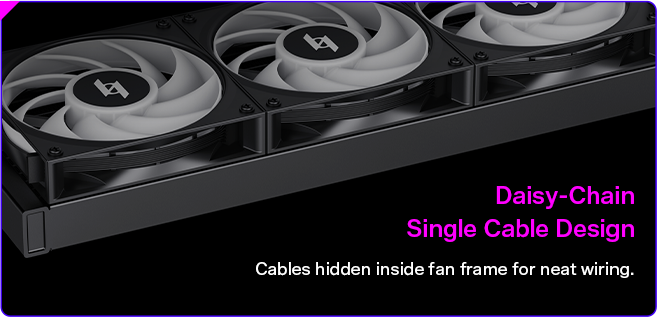

INTEGRATED BLADES SILENT FAN
Integrated blade ring prevents resonance for sturdier blades; hollow side frame maximizes light display.
04
THICK CORE RADIATOR
The radiator core is thickened to 20mm for expanded heat dissipation area.
05
OFFSET BRACKET FOR AM5 PLATFORM

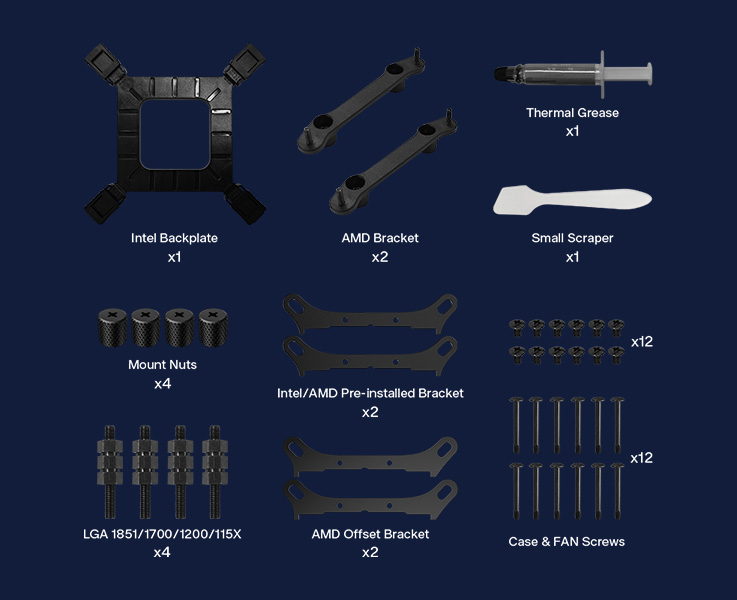

A set of AM5 offset mounting brackets included in the package to enhance cooling performance on AM5 motherboards.
Reinforced and convenient
Pre-installed Mounting Bracket Design

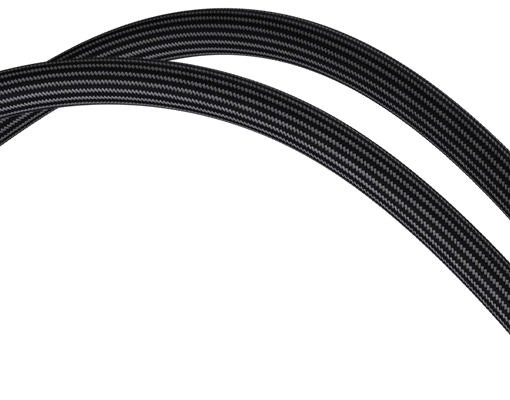

Low Evaporation Water Cooling Tubing

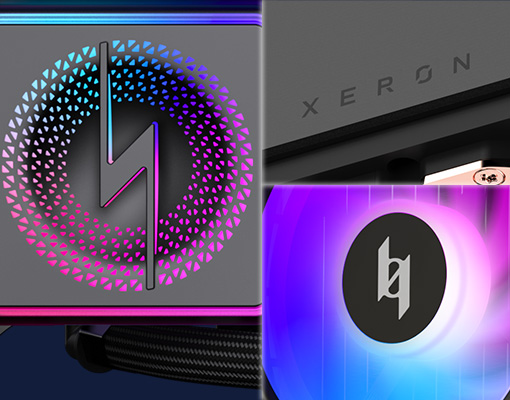

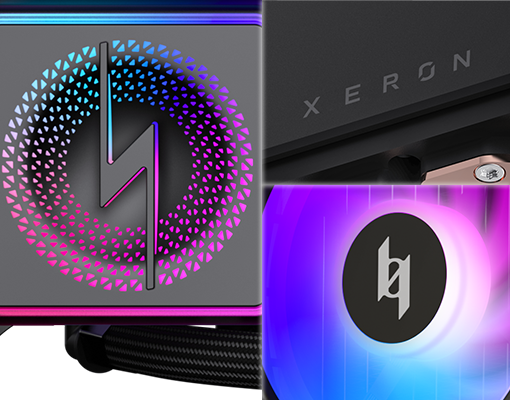

XERON Elements

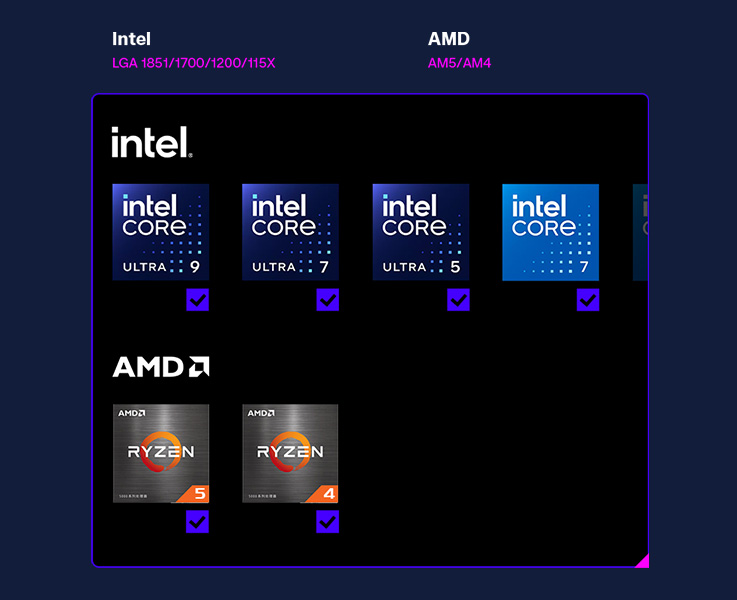

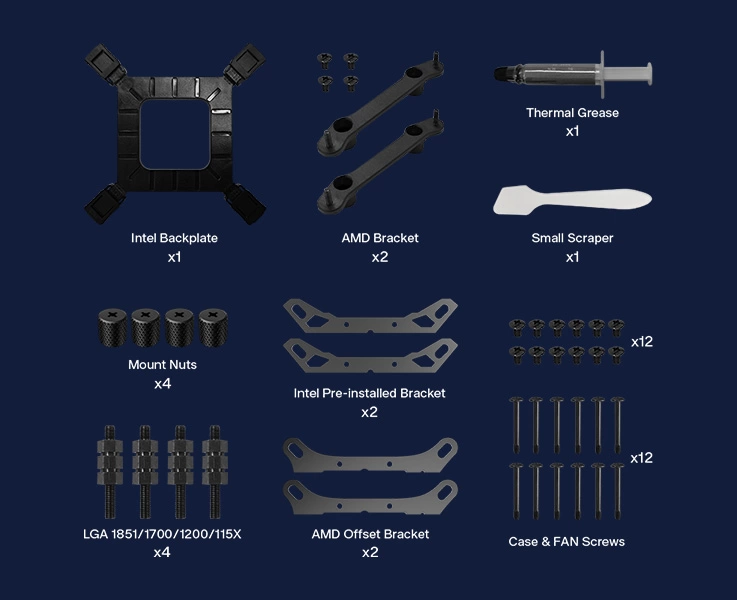

MULTI-PLATFORM EASY-INSTALL BRACKETS
Quick-mount brackets enable fast, secure installation, compatible with both Intel and AMD platforms.
Compatibility
Compatibility and size
Tech Specs
Technical specifications
| Socket Compatibility | Intel:LGA1851/1700/1200/115X AMD:AM5/AM4 |
| Thermal Design Power(TDP) | 300 W |
| Net Weight | 1800 g |
| Radiator Dimensions | 396*120*27 mm |
| Radiator Material | Aluminum |
| Tube length | 400 mm |
| Pump Dimensions | L：72.9 mm*W：72.9 mm*H：67 mm |

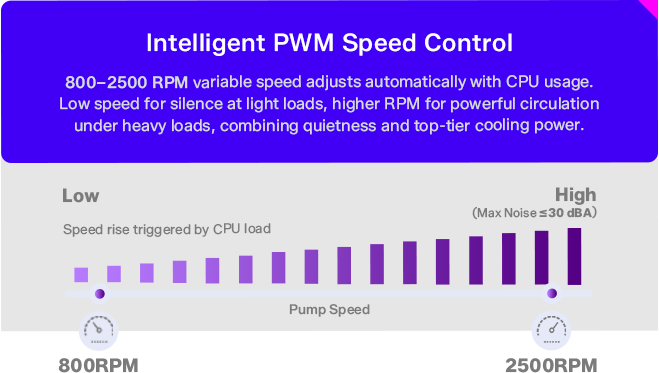

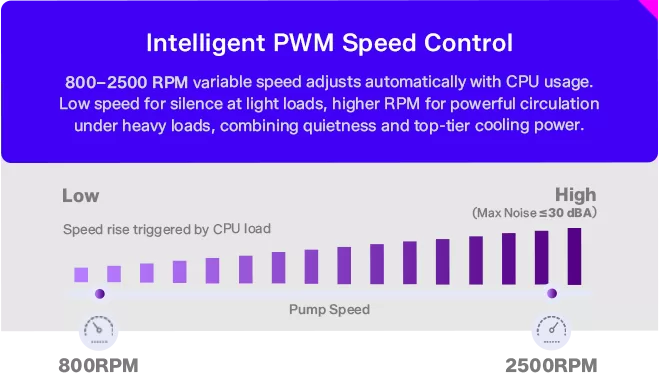

| Pump Speed | 800-2500±10% RPM |
| Pump Noise | ≦30 dB(A) |
| Pump Connector | 4-pin PWM |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.35 A |
| Pump Power Consumption | 4.2 W |
| Fan Dimensions | 120*120*25 mm |
| Fan Speed | 800-2400±10% RPM |
| Fan Airflow | 75.39 CFM |
| Fan Air Pressure | 2.71 mmaq |
| Fan Noise | 34.9 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.19 A |
| Fan Power Consumption | 2.2 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Control | M/B with 5V ADD-RGB Header |
| LED Rated Voltage | 5 VDC |
| LED Rated Current | 0.51 A±10%（PUMP）/ 0.84 A±10% ( FAN×3） |
| LED Power Consumption | 2.55 W（PUMP）/ 4.2 W（FAN×3） |
Review Doc
Downloads and documents
Official review materials and downloadable product documents.
The product displays on the above pages are for reference only, may have slight differences from the actual products, and the actual products shall prevail in all cases.
