01

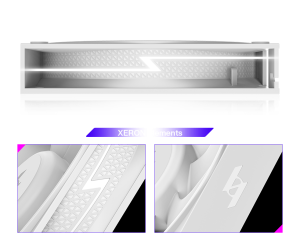

CYBER INDUSTRIAL STYLE. MINIMALIST INTEGRATED FRAME
Embedded brand emblem, symbolizing speed and power.

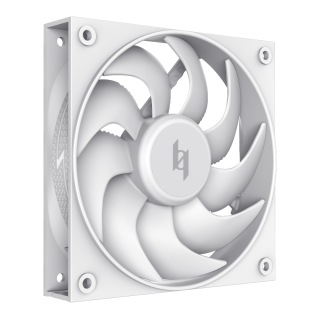

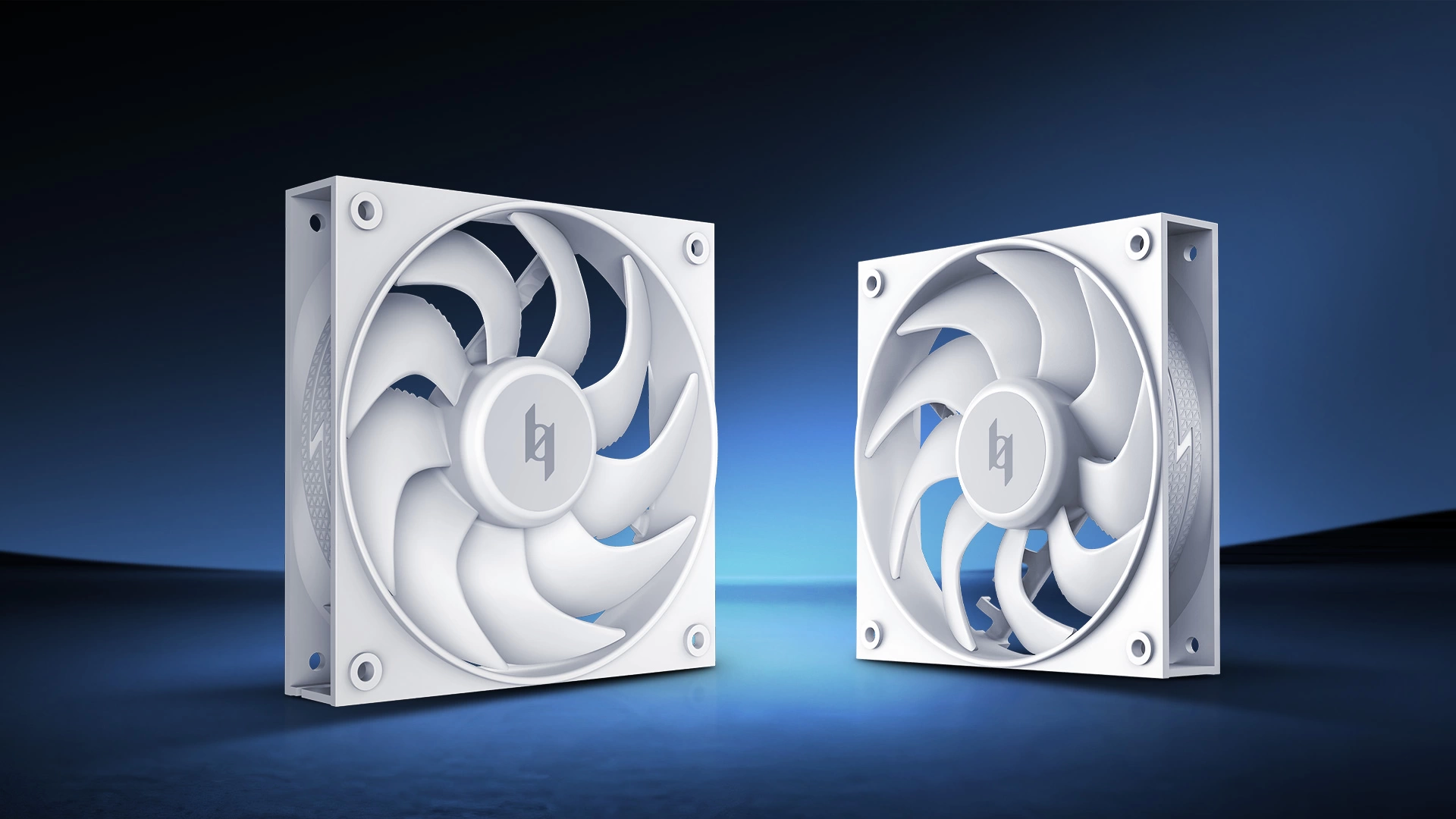

MAX F120 WH
Quiet Fan
02

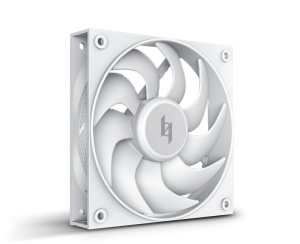

SWIFT WIND COOLING PERFORMANCE FIRST
Intelligent speed adjustment, dynamic balance between performance and silence.
03

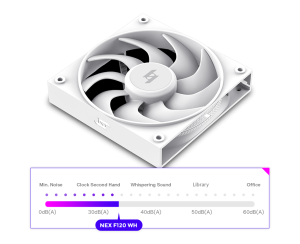

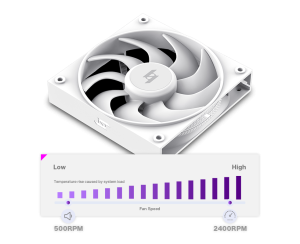

SUPPORT PWM CONTROL
With PWM temperature control enabled on the motherboard, the fan automatically increases speed as CPU temperature rises forrapid cooling. When CPU temperature drops, the fan reduces speed to conserve energy and minimize noise. SUPPORT PWM CONTROL
04

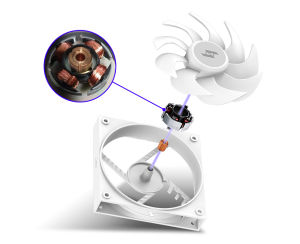

GENUINE FDB BEARING
The bearing service life reaches up to 40,000 hours, delivering quiet operation and outstanding durability.
05

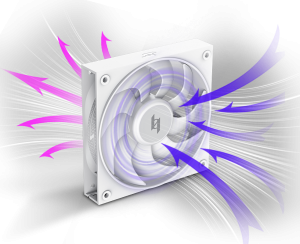

DUAL-CURVATURE AERODYNAMIC DESIGN
Balance aerodynamic pressure load, boost airflow efficiency, deliver low noise and high air volume!
Reinforced and convenient

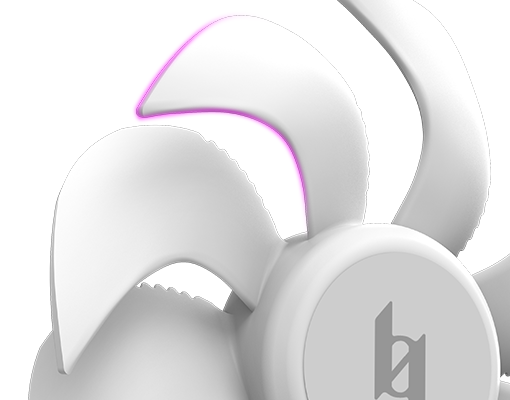

Dual-Curvature Fan Blades

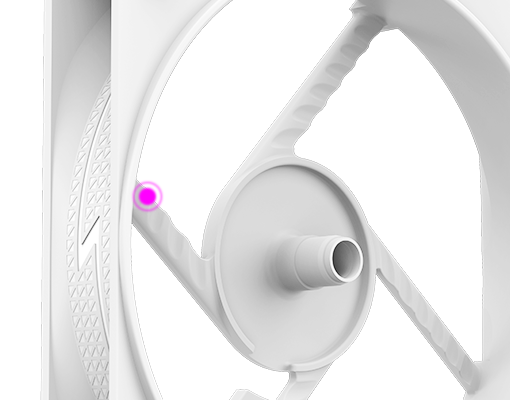

Special Pressure Relief Silent Frame

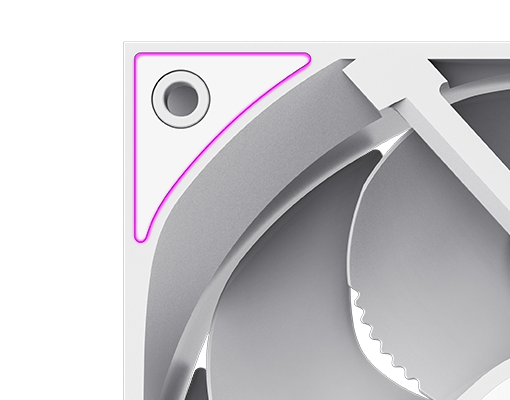

Four Silicone Anti-vibration Pads

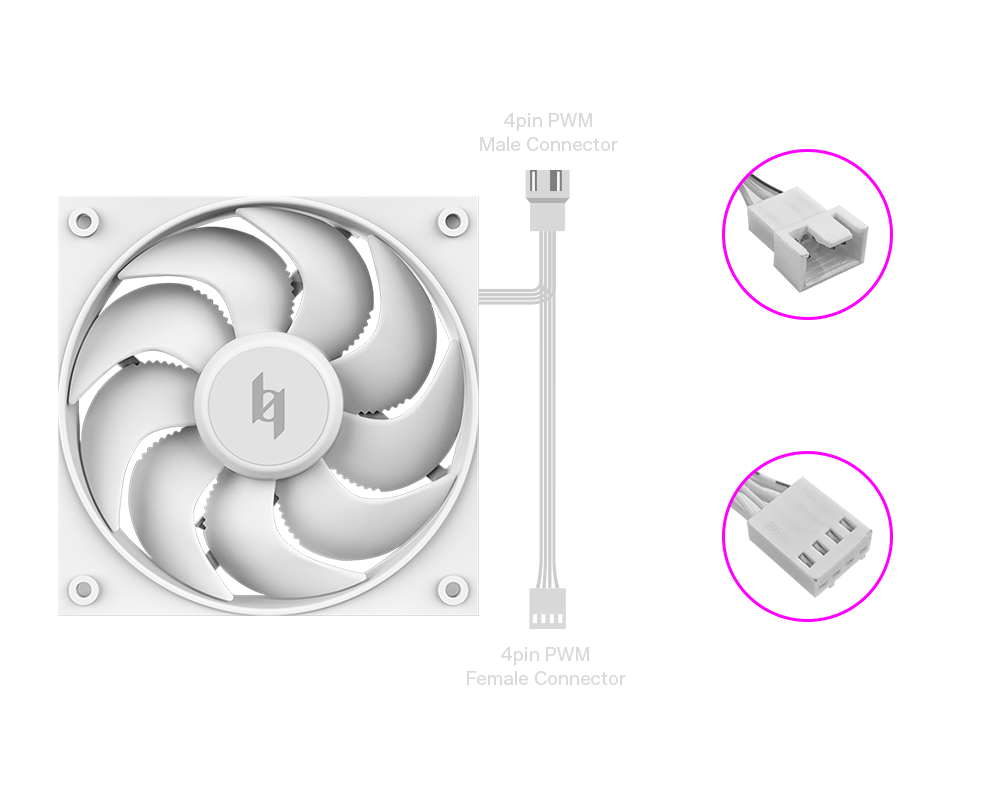

NEAT CABLE LAYOUT NO WIRING MIX-UPS
Short daisy-chain cables with 4-pin PWM male and female connectors, allowing multiple fans to be linked in series. A 500mm PWM extension cable is included with every fan.
Compatibility
Compatibility and size
Tech Specs
Technical specifications
| Fan Dimensions | 120×120×25mm |
| Net Weight | 457.2g |
| Fan Speed | 500~2400RPM±10% |
| Fan Airflow | 79CFM |
| Fan Air Pressure | 5.51mmAq |
| Fan Noise | 33.91dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | FDB Bearing |
| Fan Rated Voltage | 12V DC |
| Fan Rated Current | 0.22A±10% |
| Fan Power Consumption | 2.64W |
Review Doc
Downloads and documents
Official review materials and downloadable product documents.
The product displays on the above pages are for reference only, may have slight differences from the actual products, and the actual products shall prevail in all cases.
