270° Panoramic View

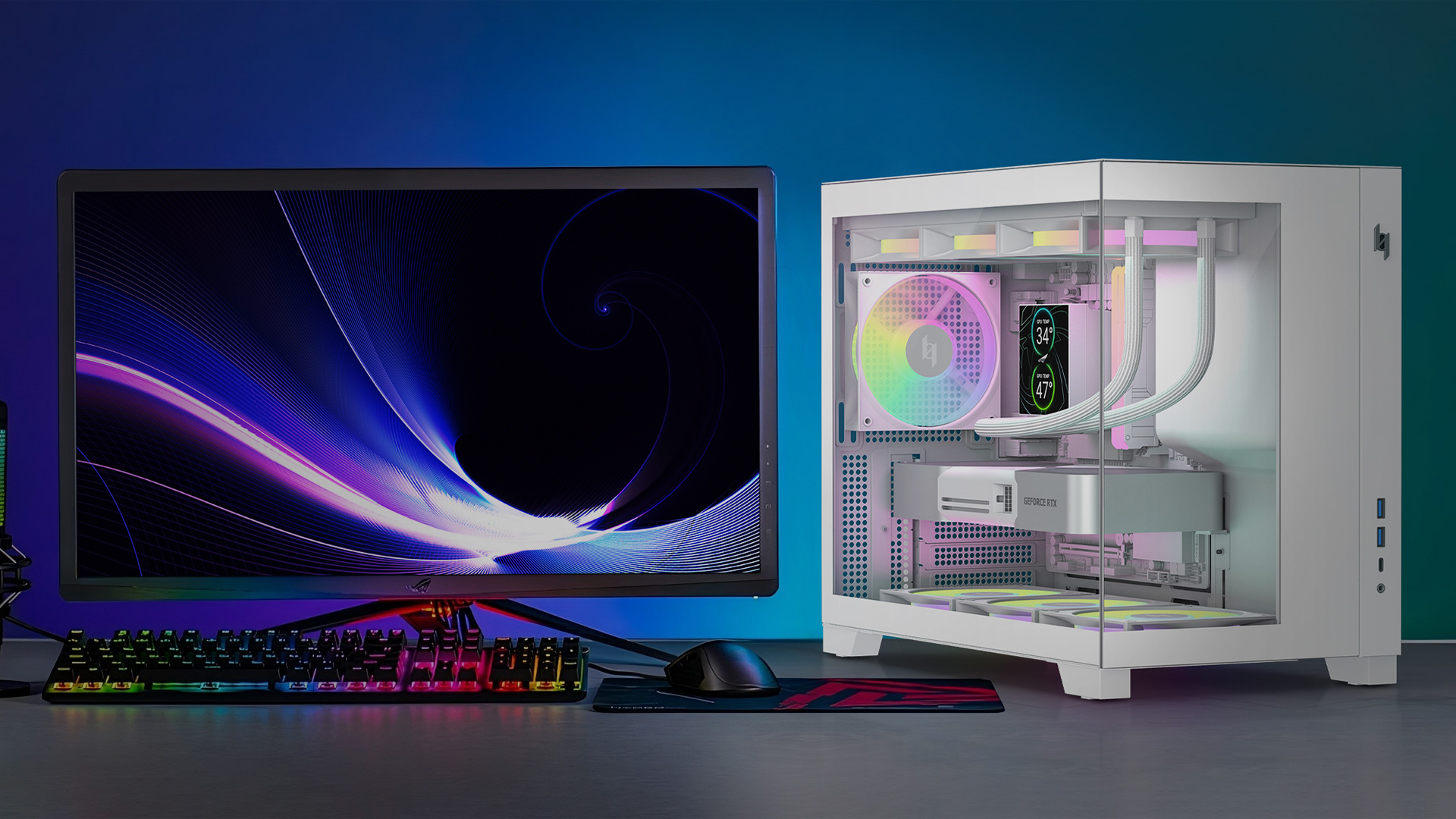

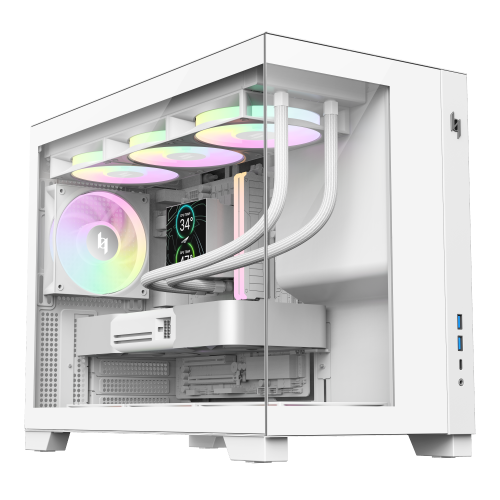

NEX C33 WH

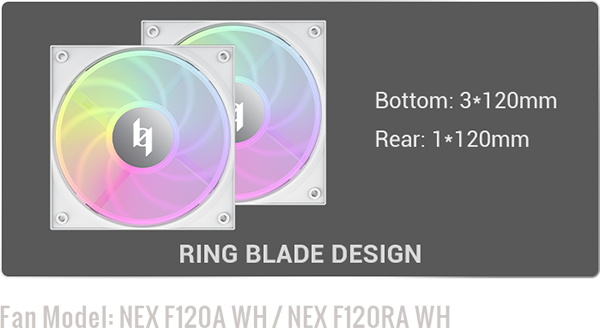

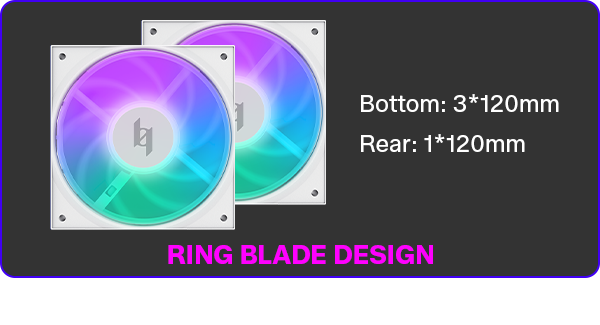

• Dual tempered glass panels• Dual-layer top cover for a cleaner, neater appearance• Top-mounted support for a 360mm radiator• Supports up to 7 × 120mm or 3 × 140mm fans• Compatible with BTF motherboards• Includes 4 × 120mm daisy-chained ARGB fans with ring blade design• Eco-friendly coating
...

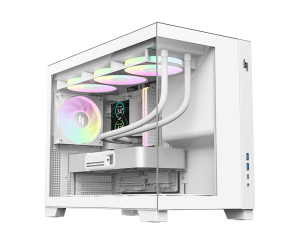

270° PANORAMIC VIEW
Borderless design with tempered glass on the front and side, offering an unobstructed view of hardware and lighting effects.

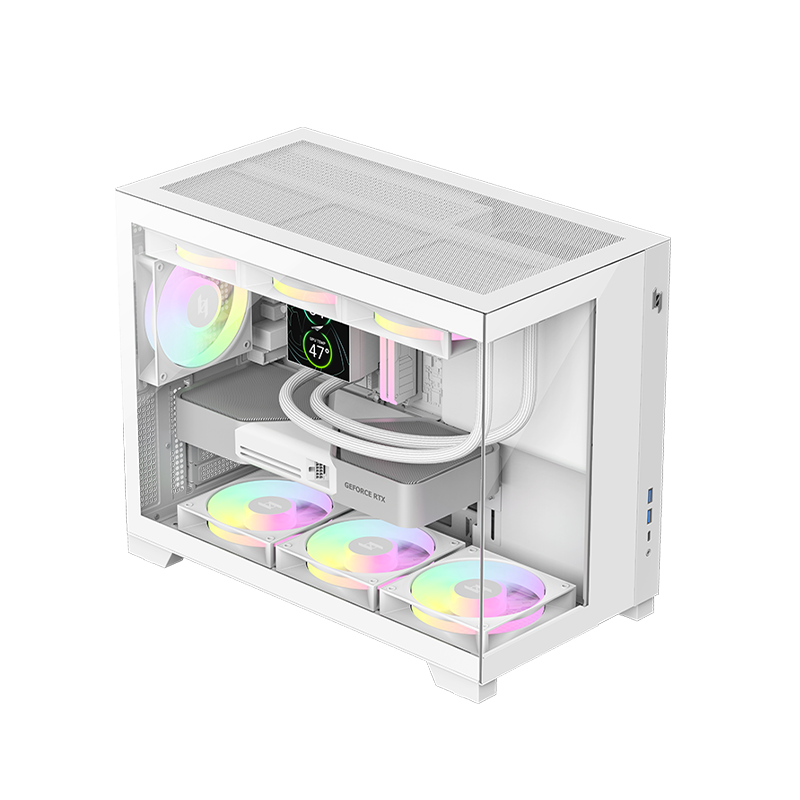

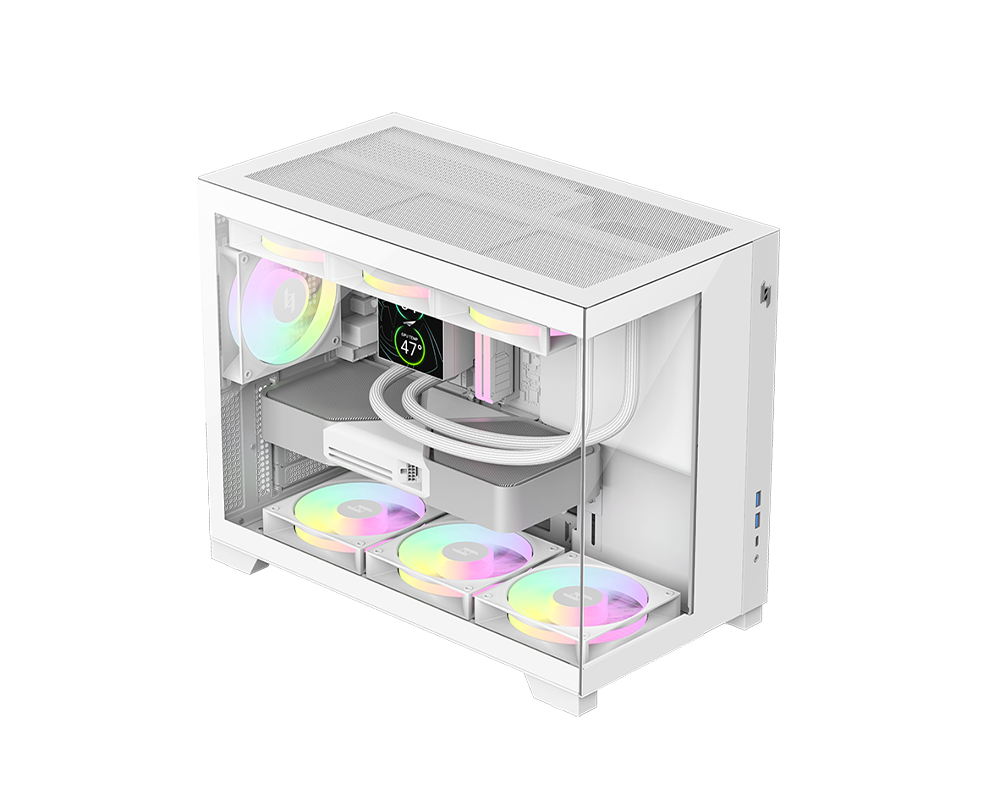

EFFICIENT COOLING AIRFLOW
Supports both air cooling and liquid cooling solutions. Features a separated power supply compartment for efficient cooling. Quickly dissipates heat,ensuring stable computer operation.

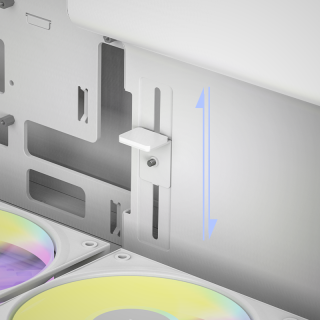

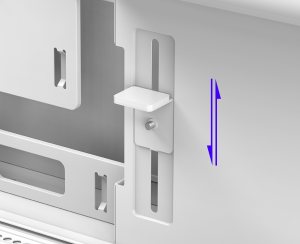

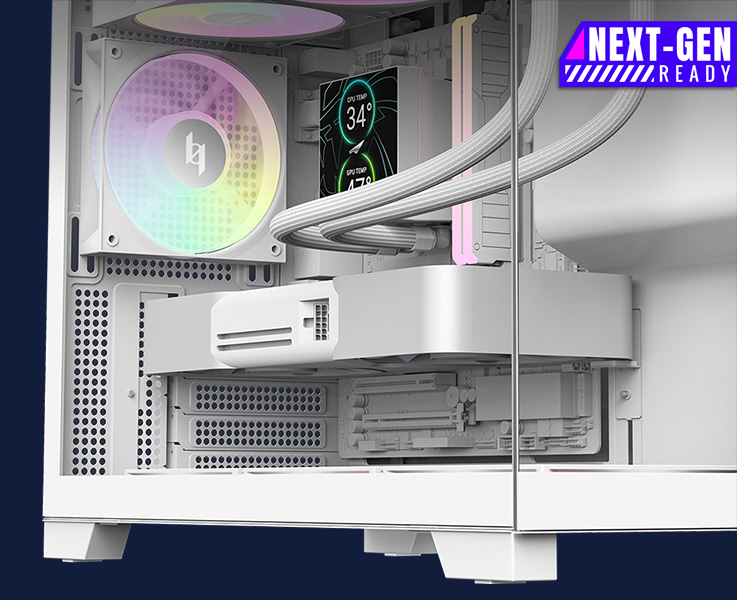

INTEGRATED GPU SUPPORT BRACKET
Includes a height-adjustable GPU holder to minimize sag and protect your graphics card long term.

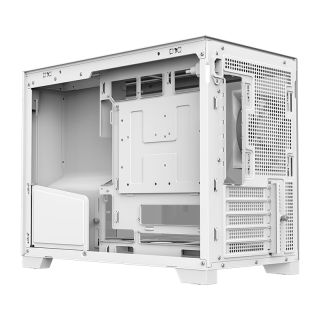

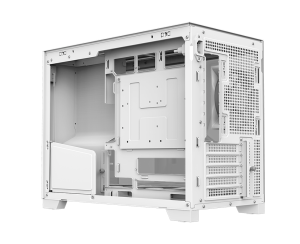

SUPPORTS BTF MOTHERBOARDS
Supports M-ATX BTF motherboards with 30mm cable space for a clean build.
REINFORCED AND CONVENIENT

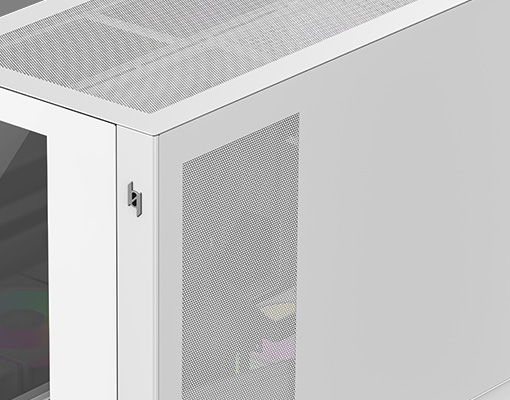

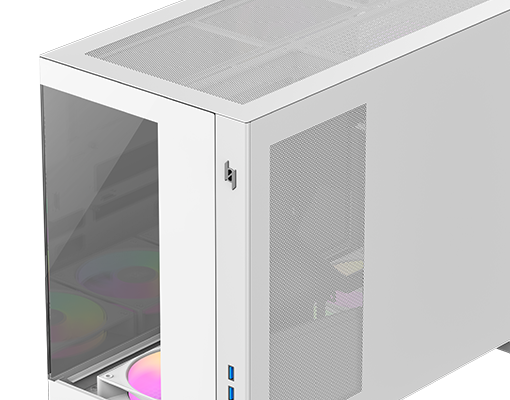

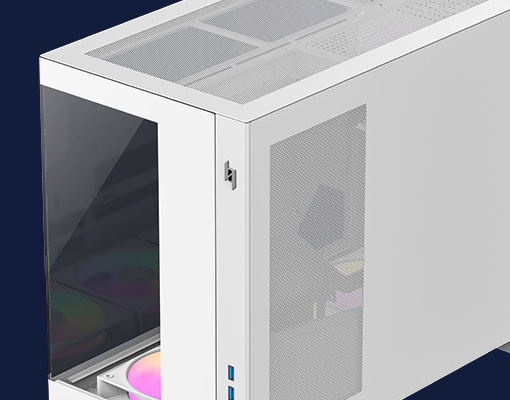

Integrated Stamped Mesh Design

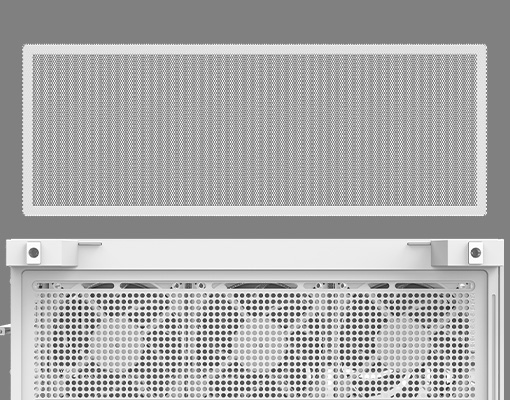

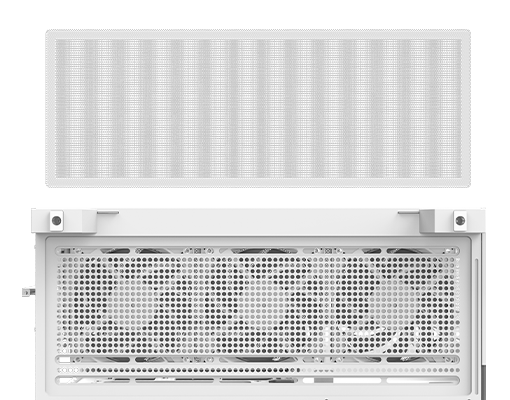

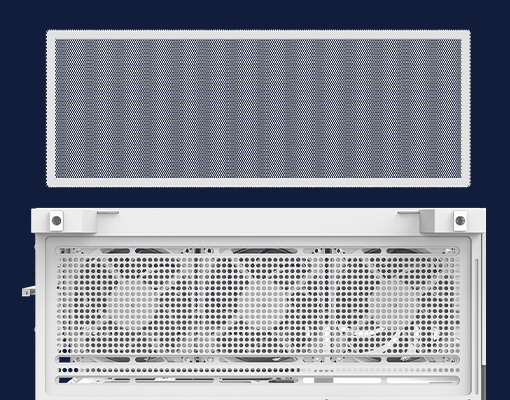

Bottom Dust Filter

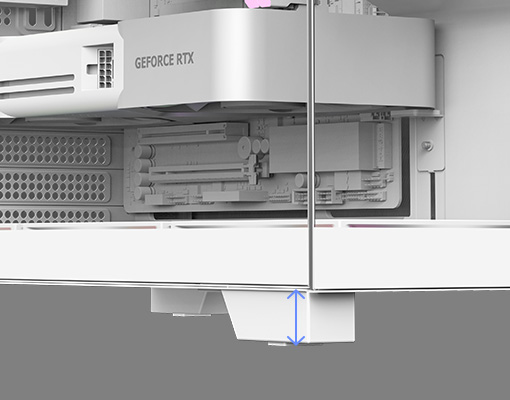

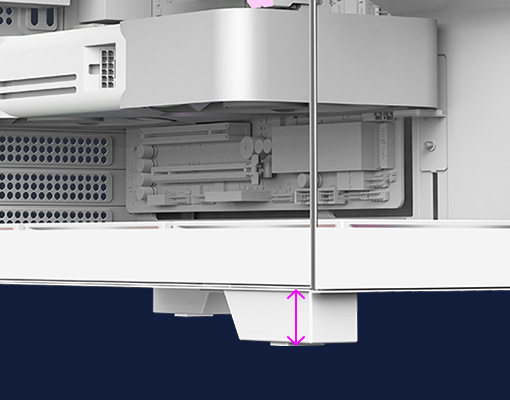

Elevated Feet Design
COMPATIBILITY AND SIZE
Size
I/O Panel
M/B Support：M-ATX / ITX
CPU Cooler Height：180mm
VGA Length：425mm
3.5"HDD x 1 + 2.5"SSD x 2
Top: 3×120mm(optional)
Rear: 1×120mm (pre-installed)
Bottom：3×120mm (pre-installed)
Top: 120/240/360mm
Rear: 1×120mm
The product displays on the above pages are for reference only, may have
slight differences from the actual products, and the actual products shall
prevail in all cases.
| Product Dimensions | 435×235×355mm(L×W×H) |
| Carton Dimensions | 414×298×510mm(L×W×H) |
| Net Weight | Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | ITX / M-ATX / BTF |
| Front I/O Ports | USB3.0×2、Type-C×1、Audio×1 |
| 3.5" Drive Bays | 1 |
| 2.5" Drive Bays | 1+1 |

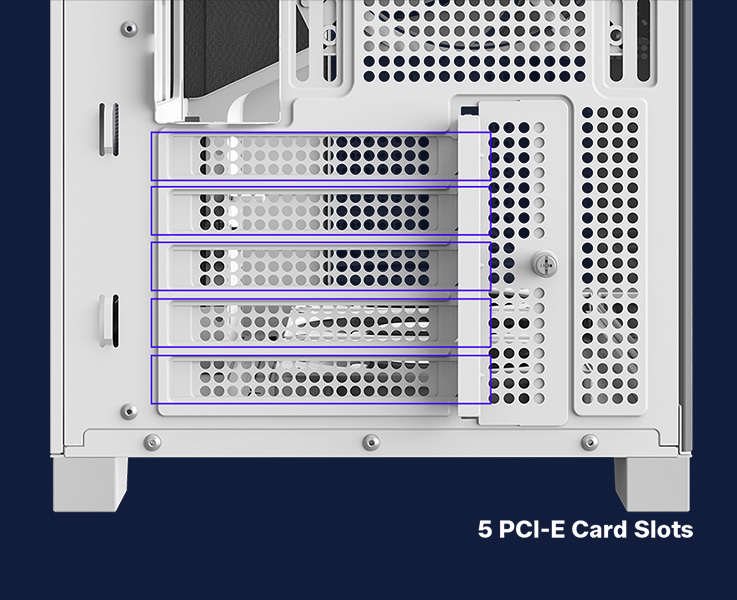

| Expansion Slots | 5 Slots |
| Pre-Installed Fans | Rear: 1×120mm Bottom：3×120mm |
| Fan Support | Top: 3×120mm Rear: 1×120 / 1×140mm Bottom: 3×120 / 2×140mm |
| Radiator Support | Top: 120/240/360mm Rear: 1×120mm |
| CPU Cooler Height Limit | 180mm |
| GPU Length Limit | 425mm |
| Power Supply Type | ATX PS2 （maximum length: 140mm） |
