Flexible airflow tuning

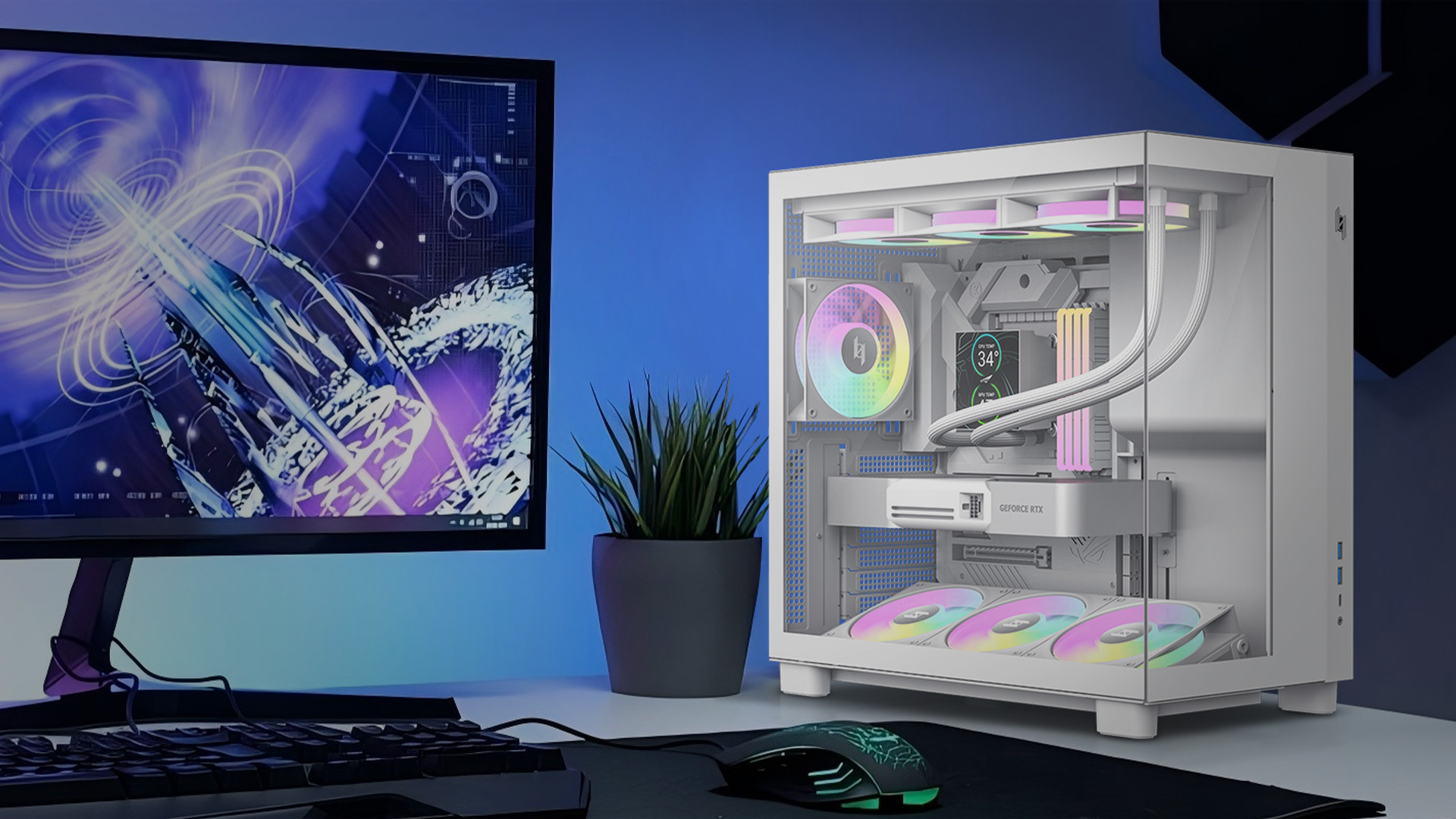

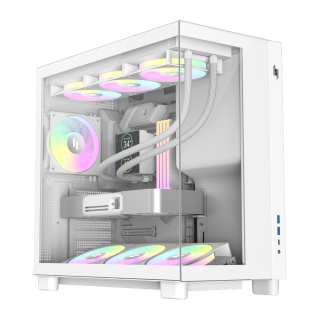

NEX C53 WH
NEX C53 features a multi-angle fan bracket that allows precise airflow tuning for different system builds, delivering optimized cooling within a compact panoramic chassis.• Panoramic “sea-view” layout with optimized space usage.• Front-mounted PSU layout maximizes internal space and eliminates unused corners.• Supports 360mm radiators, 175 mm air coolers, 7×120 mm or 5×140 mm fans, 410mm GPUs and 160mm ATX PSUs.• Multi-angle fan bracket for flexible airflow tuning.• 4 pre-installed ARGB fans with ring blade design.• Supports BTF motherboards• Integrated GPU support bracket for long-term stability.• Front I/O with modern Type-C Gen2×2 and USB 3.0 ports.
...

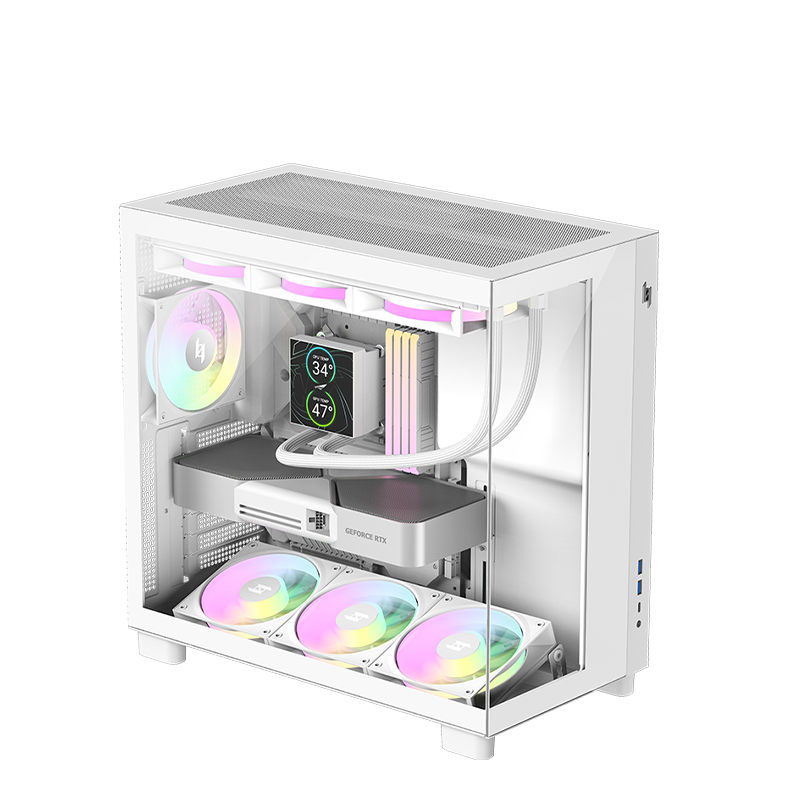

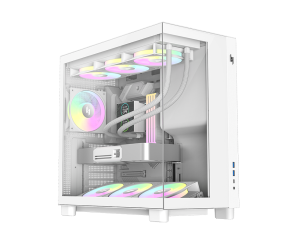

270° PANORAMIC VIEW
Borderless design with tempered glass on the front and side, offering an unobstructed view of hardware and lighting effects.

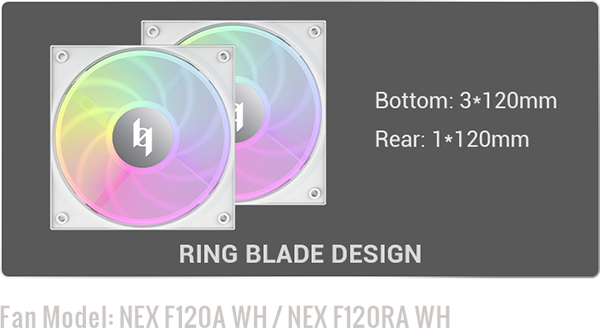

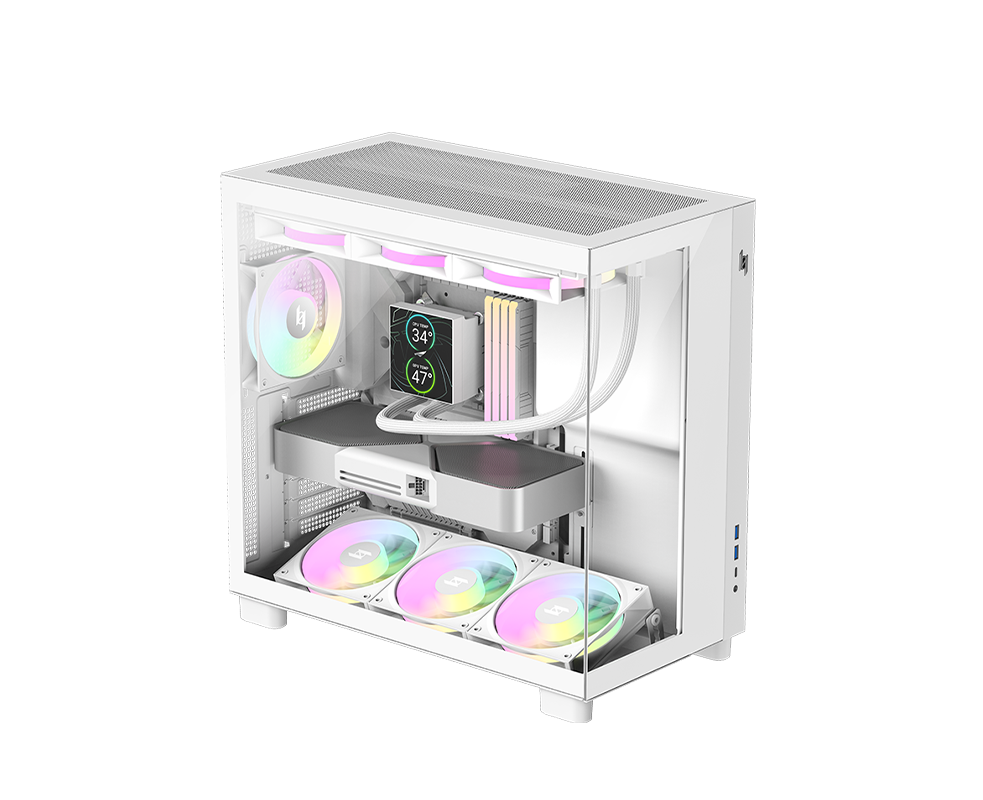

EFFICIENT COOLING AIRFLOW
Comes with 4 pre-installed PWM fans and supports both air and liquid cooling solutions. Features a separated power supply compartment for efficient cooling. Quickly dissipates heat, ensuring stable computer operation.

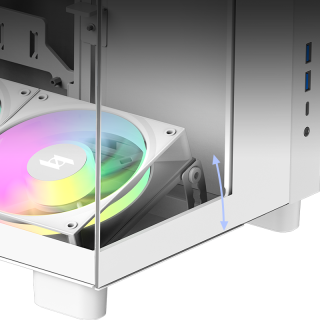

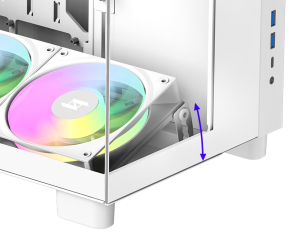

Adjustable fan bracket
The bottom-mounted adjustable fan bracket creates an optimized airflow channel to accelerate heat dissipation.

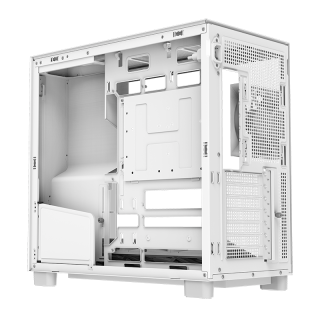

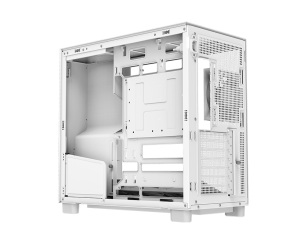

SUPPORTS BTF MOTHERBOARDS
Supports ATX/M-ATX BTF motherboards with 30mm cable space for a clean build.
REINFORCED AND CONVENIENT

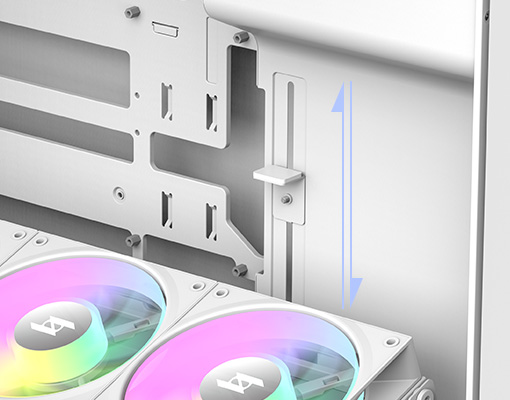

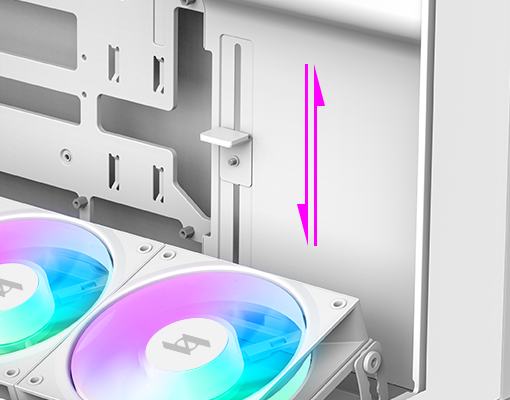

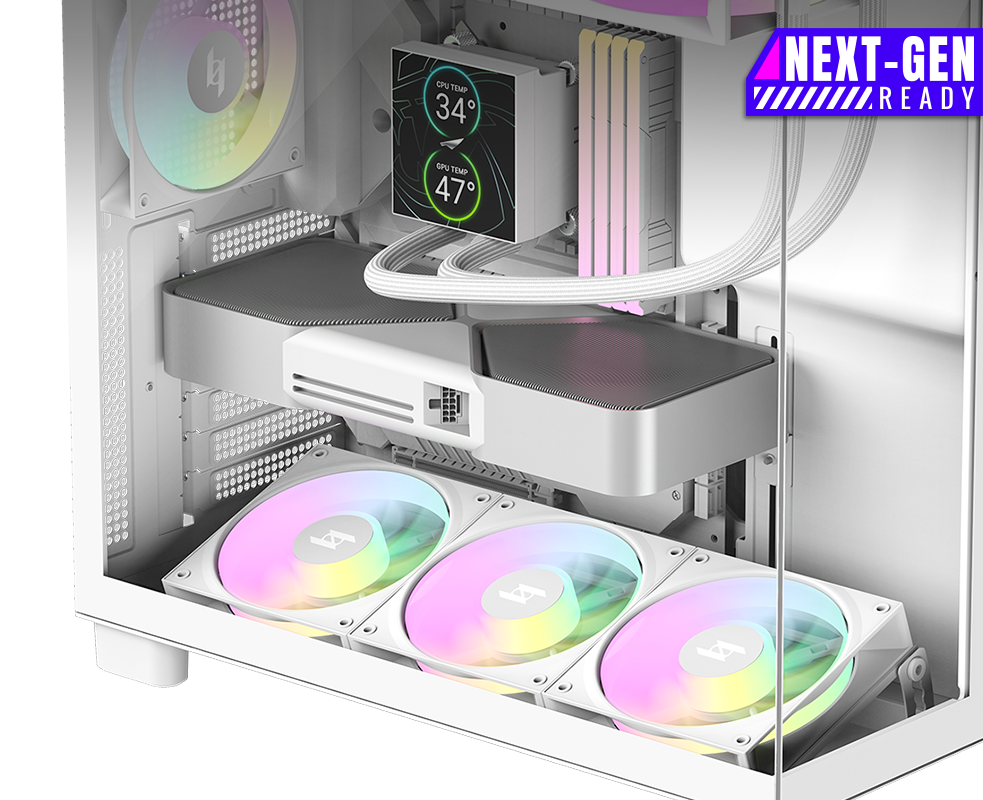

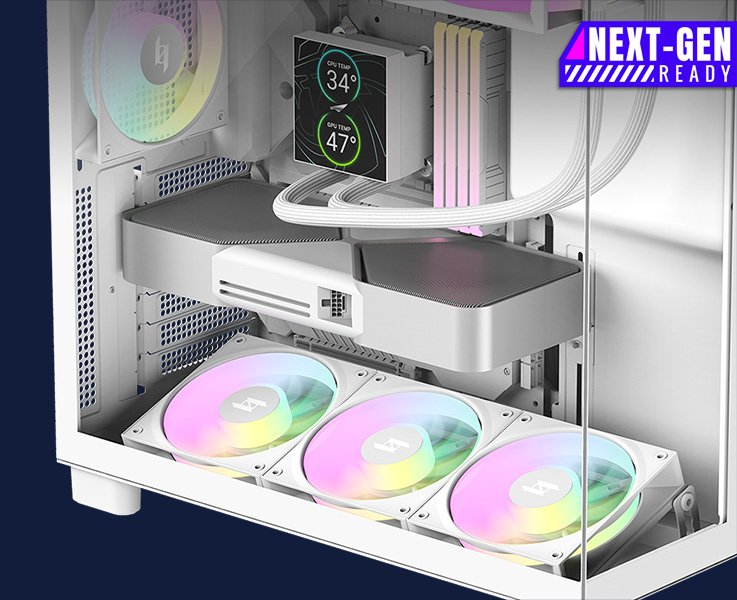

Integrated GPU Support Bracket

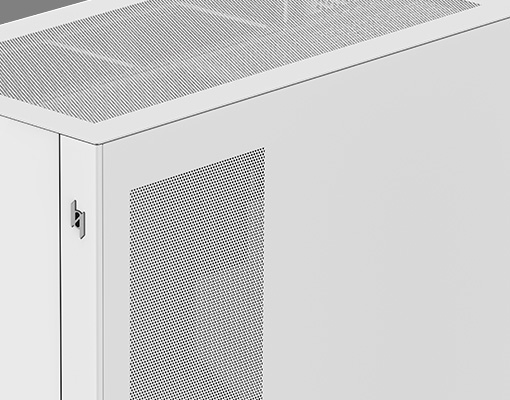

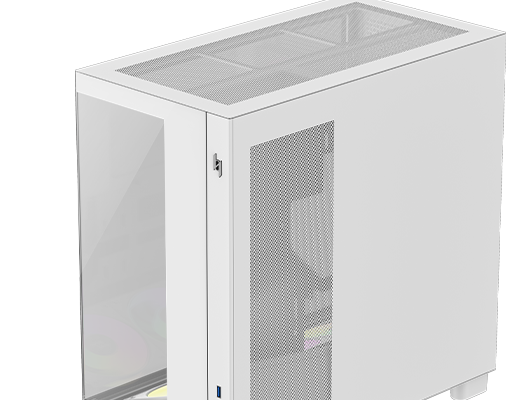

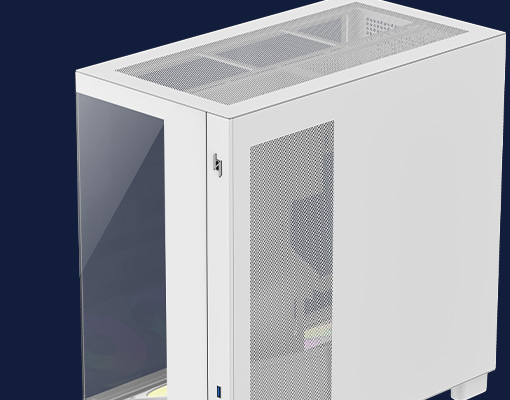

Integrated Stamped Mesh Design

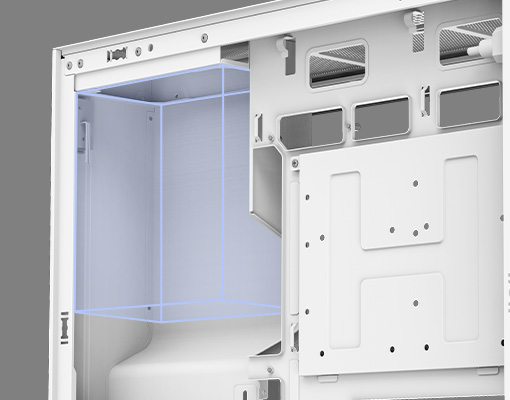

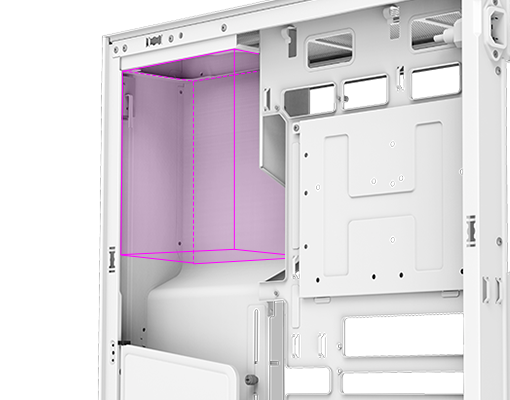

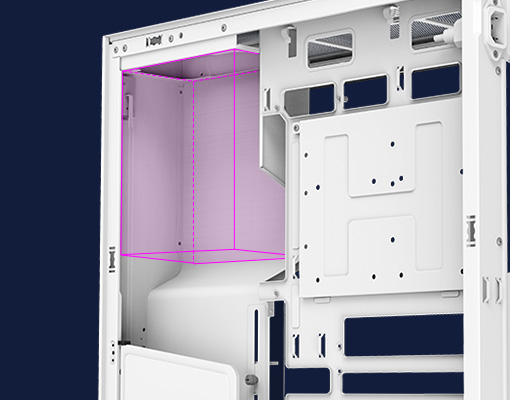

Top-mounted PSU Compartment
COMPATIBILITY AND SIZE
Size
I/O Panel
M/B Support：ATX / M-ATX / ITX
CPU Cooler Height：180mm
VGA Length：425mm
PSU Length: 160mm
3.5"HDDx1 + 2.5"SSDx1
or 2.5"SSDx2
Top: 3×120mm(optional)
Rear: 1×120(pre-installed) / 1×140mm(optional)
Bottom: 3×120mm(pre-installed)
Top: 120/240/360mm
Rear: 1×120mm
The product displays on the above pages are for reference only, may have
slight differences from the actual products, and the actual products shall
prevail in all cases.
| Product Dimensions | 435×235×435mm(L×W×H) |
| Carton Dimensions | 489×298×510mm(L×W×H) |
| Net Weight | Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | ITX / M-ATX / ATX / BTF |
| Front I/O Ports | USB3.0×2、Tpye-C×1、Audio×1 |
| 3.5" Drive Bays | 1 |
| 2.5" Drive Bays | 1+1 |

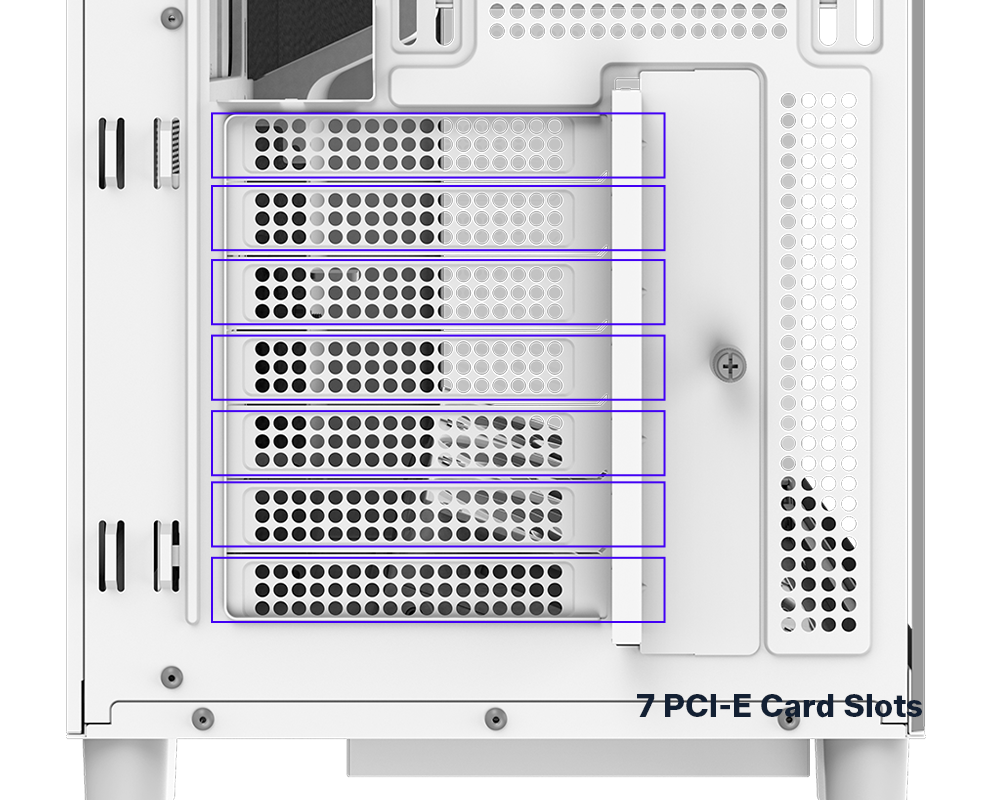

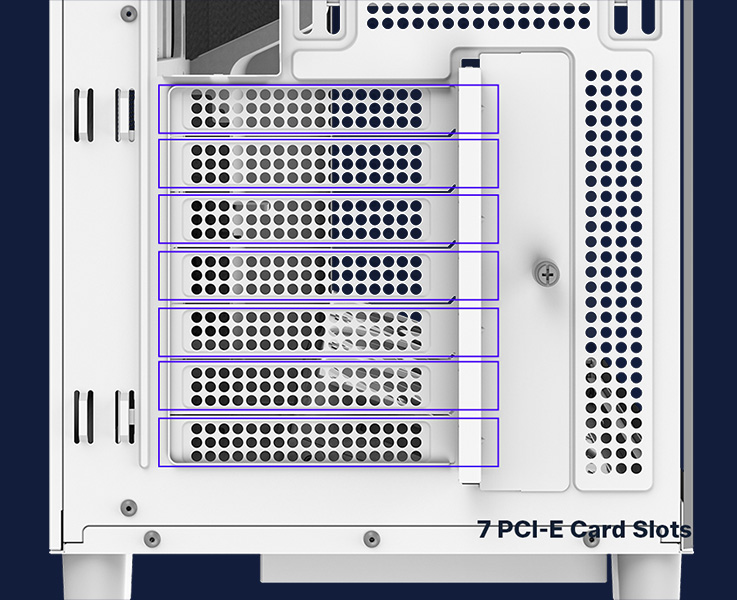

| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Rear: 1×120mm Bottom：3×120mm |
| Fan Support | Top: 3×120mm Rear: 1×120 / 1×140mm Bottom: 3×120mm |
| Radiator Support | Top: 120/240/360mm Rear: 1×120mm |
| CPU Cooler Height Limit | 180mm |
| GPU Length Limit | 425mm |
| Power Supply Type | ATX PS2 （maximum length: 160mm） |
