The RTX 5080 is a flagship card, and flagship cards are big. Aftermarket coolers push 330-360mm lengths, 3.5-slot thickness, and a 12V-2x6 power connector that needs clear cable routing. Picking the right PC case for RTX 5080 is not about looks — it is about clearance, airflow, and PSU headroom.
Quick Answer: Will My Case Fit an RTX 5080?
| Check | RTX 5080 Requirement | What to Verify |
|---|---|---|
| GPU length clearance | 330-360mm (aftermarket models) | Case spec sheet max GPU length |
| GPU thickness | 3.5 slots thick | Case bracket depth, side glass gap |
| PSU wattage | 750W recommended | 850W if overclocking or high-TDP CPU |
| Airflow | 360W TDP needs strong intake | Mesh front, bottom intake fans |
| Power cable routing | 12V-2x6 connector | Enough space for cable bend near the card |
If your case clears 400mm GPUs and has mesh intake, the 5080 will fit. If it tops out at 320mm, you are shopping for a new case anyway.

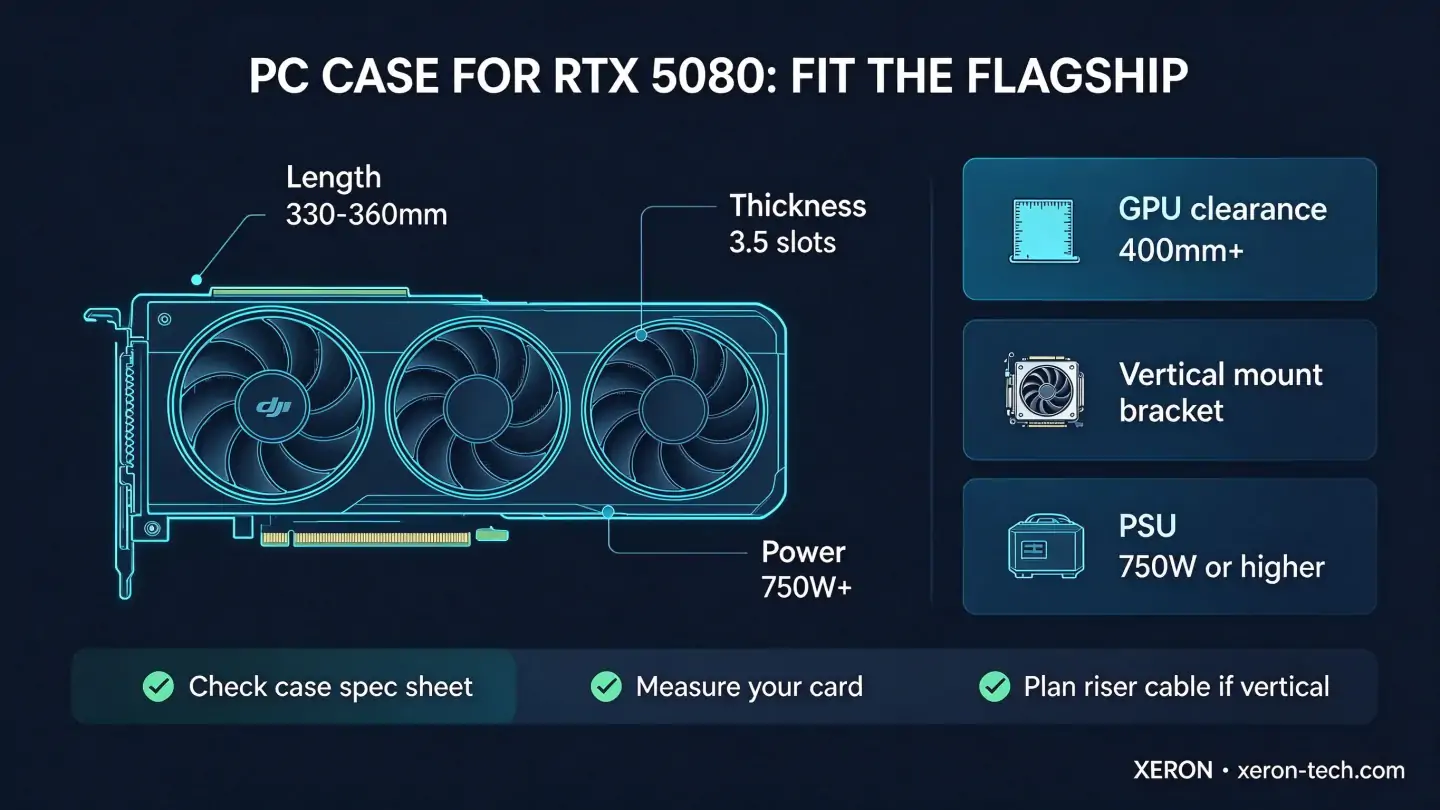

RTX 5080 Dimensions: Why Clearance Matters
| Spec | Reference / Aftermarket | Case Implication |
|---|---|---|
| Length | 330mm reference, up to 360mm on tri-fan models | Need 370mm+ clearance for comfortable fit |
| Thickness | 3.5 slots (about 58mm) | Side glass or vertical bracket must clear 60mm |
| Power connector | 12V-2x6 (16-pin) | Cable bends need 50mm+ space behind the card |
| TDP | 360W | Card pulls hot air; intake fans must be unobstructed |
Mid-towers that used to clear 320mm cards will not fit a 5080. Measure the case GPU clearance before you buy the card, not after.
Airflow: The 5080 Runs Hot
At 360W TDP, the RTX 5080 dumps a lot of heat into the case. A glass-fronted case with restricted intake will push GPU temps 8-12 C higher than a mesh-front equivalent. Look for:
| Airflow Feature | Why It Matters for 5080 |
|---|---|
| Mesh front panel | Pulls cool external air directly to the GPU intake |
| Bottom intake fans | 5080 fans pull air from below; bottom intake feeds them |
| Rear exhaust | Removes hot air before it recirculates |
| Separate PSU chamber | PSU heat does not mix with GPU intake |
Vertical vs Horizontal Mount for 5080
The 5080 is heavy (1.8-2.2kg). Vertical mounting actually helps — the weight sits on the bracket instead of sagging the PCIe slot. But a 3.5-slot card vertical needs 60mm of side clearance. If the case supports vertical GPU and has mesh side intake, vertical is the better choice for both looks and sag prevention.
PSU: 750W Minimum, 850W Recommended
NVIDIA recommends a 750W PSU for RTX 5080. If you pair it with a 13900K or 7800X3D and overclock, step up to 850W. Look for a PSU with a native 12V-2x6 cable (or a high-quality adapter) — cheap adapters are a fire risk.
XERON Cases That Fit RTX 5080
| Model | GPU Clearance | Why It Works |
|---|---|---|
 NEX C56 | 425mm | Triple-fan 5080 fits with room to spare; bottom 3x120 intake feeds the card |
 NEX C Lab | Full size, independent GPU channel | Dedicated GPU intake channel, PSU isolated, zero heat mix |
 NEX S Lab | Unlimited | Open frame, no thermal limits, showcase your flagship |
PC Case for RTX 5080 — FAQ
| Question | Answer |
|---|---|
| What size case do I need for RTX 5080? | A mid-tower or full-tower with GPU clearance of at least 370mm and 3.5-slot thickness clearance. Mini ITX or small mATX cases will not fit aftermarket 5080 coolers. |
| Will my current case fit a 5080? | Check the spec sheet. If max GPU length is 320mm or less, no. If it is 360mm+, measure the actual space behind the front fans — that reduces clearance. |
| Do I need a 1000W PSU for RTX 5080? | No. 750W is the NVIDIA recommendation, 850W is comfortable. 1000W is only for 5090 or heavily overclocked 5080s. |
| Does RTX 5080 run hot? | 360W TDP means the card runs warm under load. A well-ventilated case keeps it 10-15 C cooler than a glass-fronted showpiece. |
| Can I vertical-mount a 3.5-slot 5080? | Only if the case vertical bracket clears 3.5 slots and has 60mm side clearance. Most vertical brackets are designed for 2.5-3 slot cards. |
| Does the 12V-2x6 connector need a special cable? | Use the cable that comes with your PSU. Avoid cheap adapters — they have caused fires. If your PSU does not have 12V-2x6, use the official adapter with both PCIe cables plugged in. |
| Is a 360mm AIO needed with RTX 5080? | The 5080 has its own cooling. A 360mm AIO helps the CPU, not the GPU. But since the card dumps heat, make sure the case has good exhaust. |
| Will the 5080 sag in my case? | At 2kg, sag is real. A vertical GPU bracket or a GPU support bracket prevents long-term stress on the PCIe slot. |
