270° Panoramic View

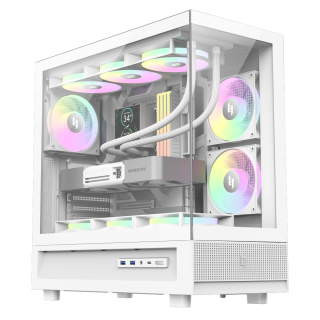

NEX C51 WH
• Panoramic case with an unobstructed, pillar-free view.• Supports 360mm top radiator and 175mm air cooler• I/O Support: 1× Type-C Gen2×2 high-speed port, 2× USB 3.0.• 3 ARGB fans pre-installed• Dust filters at top and bottom
...

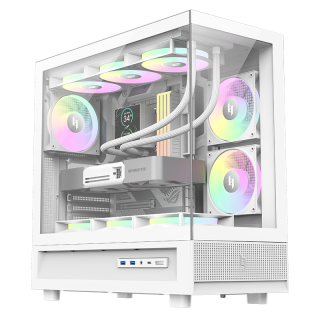

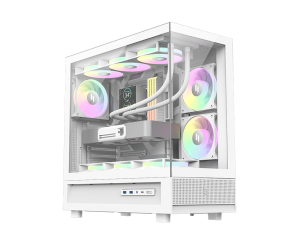

270° PANORAMIC VIEW
Tempered glass panels on the front and left sides provide a clear view of the interior.

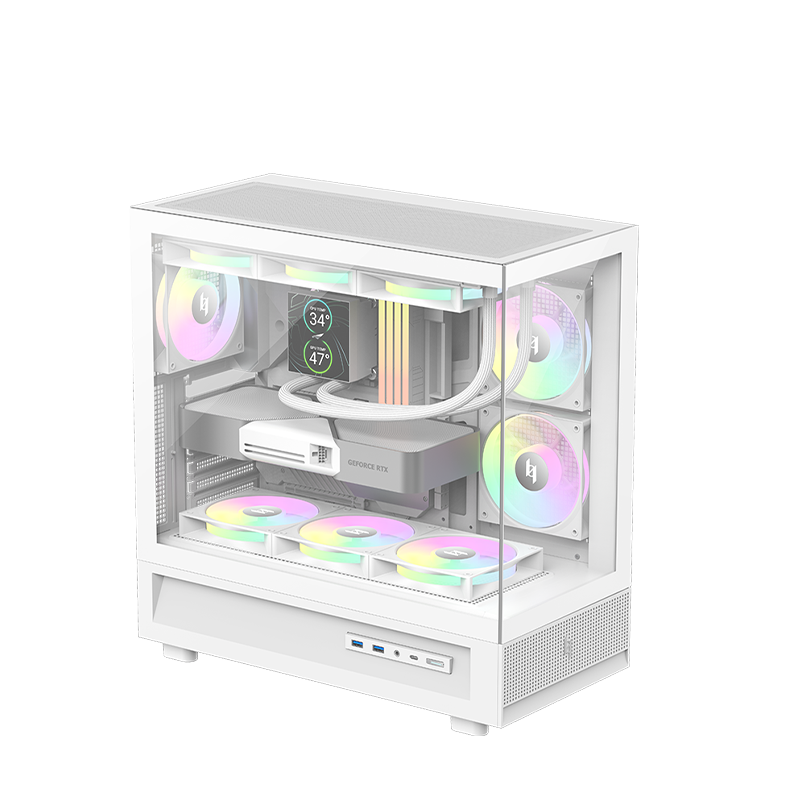

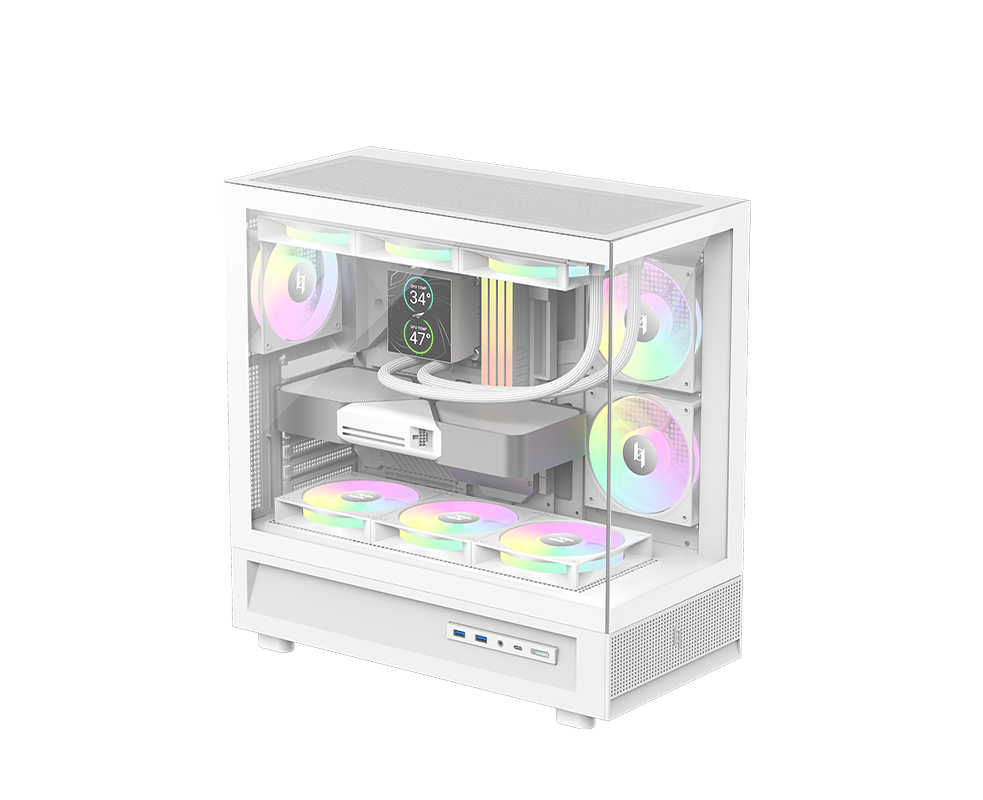

EXTENSIVE COOLING SUPPORT
Supports both air cooling and liquid cooling solutions. Features a separated power supply compartment for efficient cooling. Quickly dissipates heat, ensuring stable computer operation.

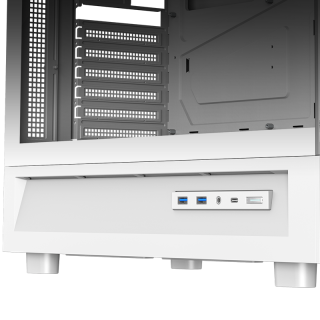

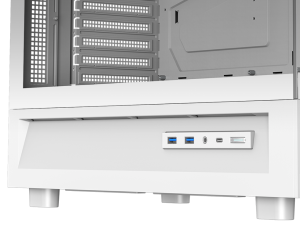

MODERN I/O PANEL
The I/0 panel features geometric cutting, delivering strong dimensionality and a sleek, contemporary design aesthetic.
REINFORCED AND CONVENIENT

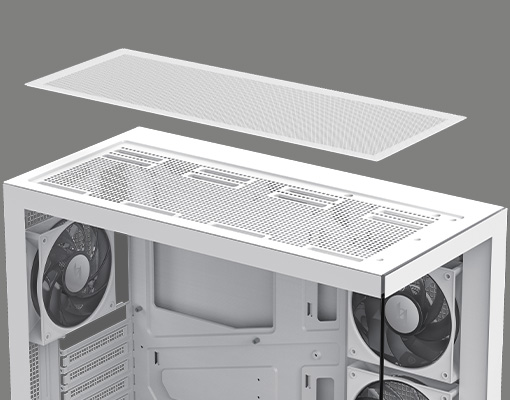

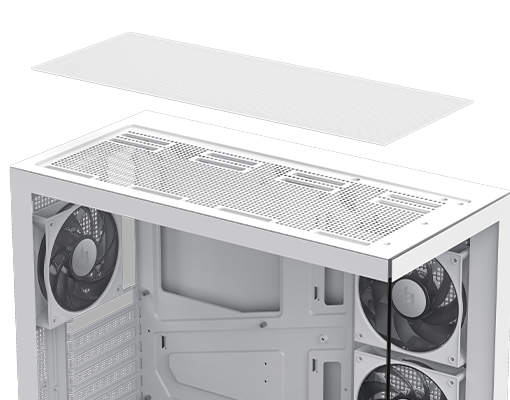

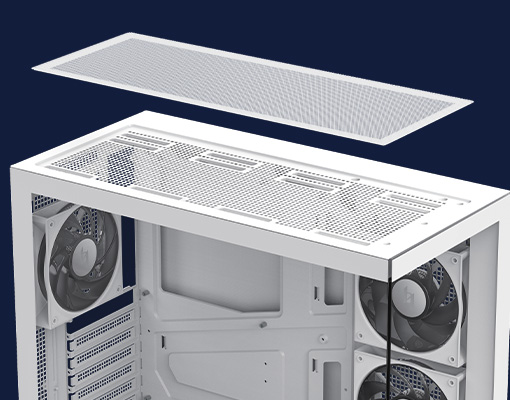

Top Magnetic Dust Filter

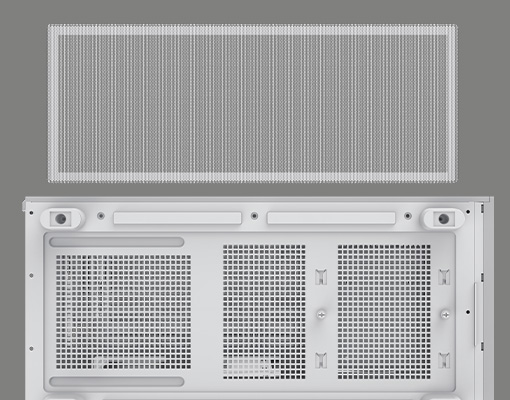

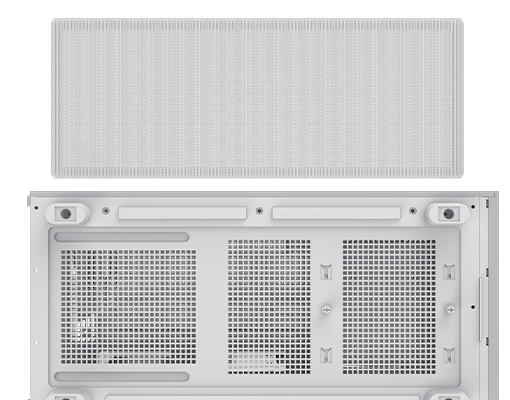

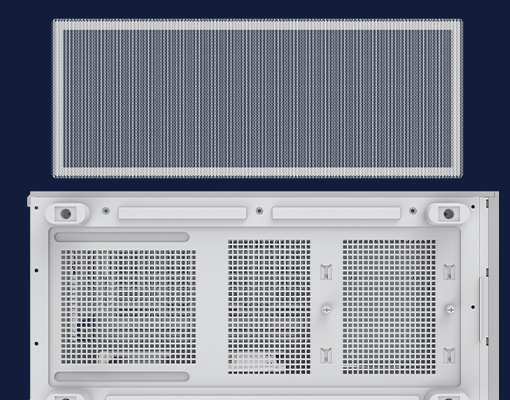

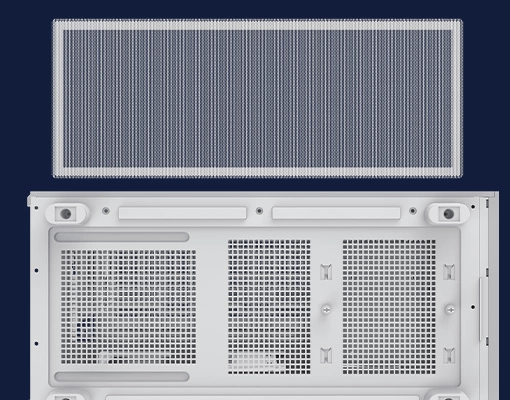

Bottom Dust Filter

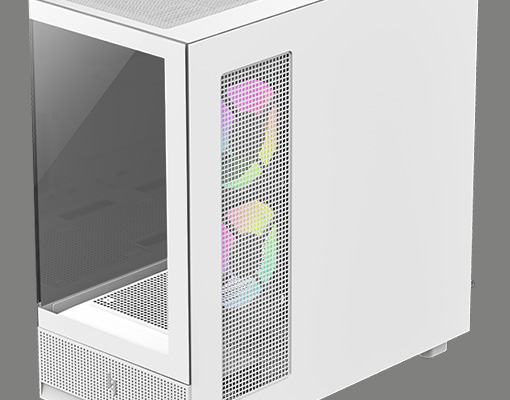

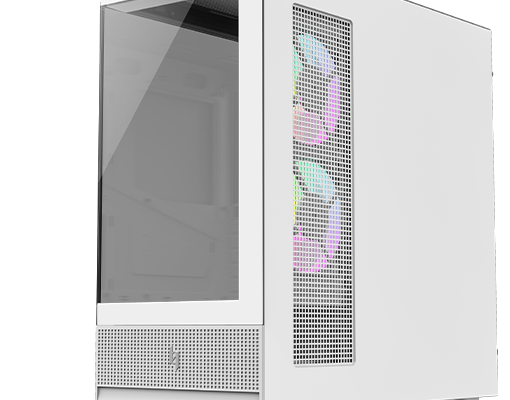

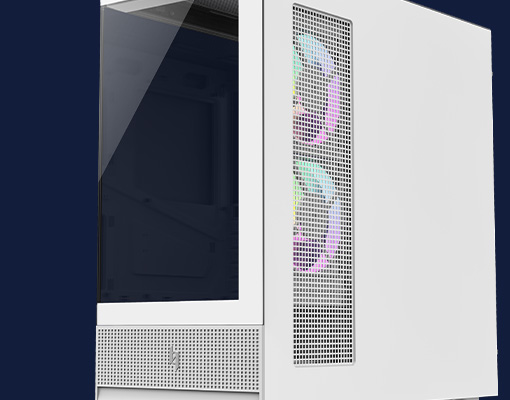

Right Side Panel with Integrated Stamped Grille Design
COMPATIBILITY AND SIZE
Size
I/O Panel
M/B: ATX / M-ATX / ITX
CPU Cooler Height: 175mm
VGA Length: 410mm
PSU: ATX Power Length 200mm
3.5"HDD x2 or
3.5"HDDx1+2.5"SSDx1

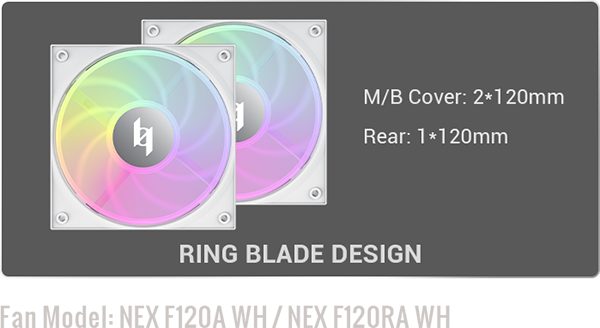

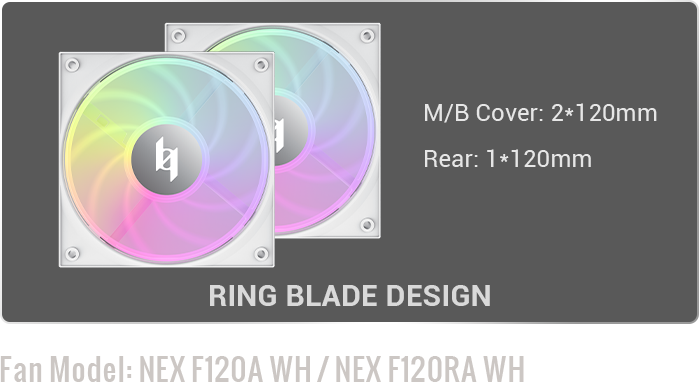

M/B: 2x120mm (pre-installed)
Rear: 1x120mm (pre-installed)
bottom: 3x120mm (optional)
Top: 3x120 / 2x140mm (optional)
Top: 120/240/360mm
Rear: 1×120mm
The product displays on the above pages are for reference only, may have
slight differences from the actual products, and the actual products shall
prevail in all cases.
| Product Dimensions | 449×222×465mm(L×W×H) |
| Carton Dimensions | 537×295×552mm(L×W×H) |
| Net Weight | Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | ITX / M-ATX / ATX |
| Front I/O Ports | USB3.0×2、Tpye-C×1、Audio×1 |
| 3.5" Drive Bays | 1+1 |
| 2.5" Drive Bays | 1 |

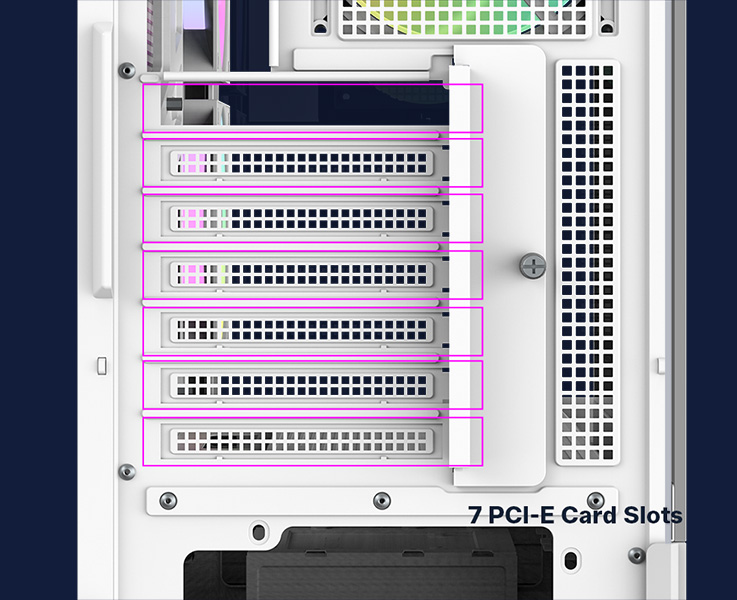

| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Rear: 1×120mm M/B：2×120mm |
| Fan Support | Top: 3×120 / 2×140mm Rear: 1×120mm Bottom: 3×120mm M/B: 2×120mm |
| Radiator Support | Top: 120/240/360mm Rear: 1×120mm |
| CPU Cooler Height Limit | 180mm |
| GPU Length Limit | 410mm |
| Power Supply Type | ATX PS2 （maximum length: 200mm） |
