01

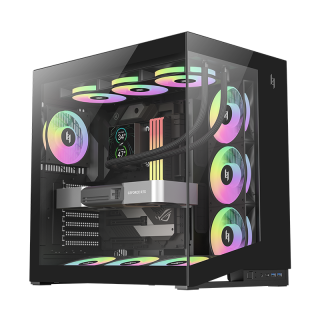

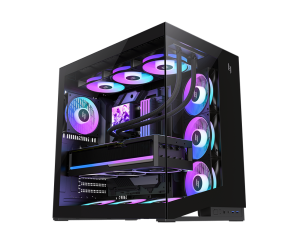

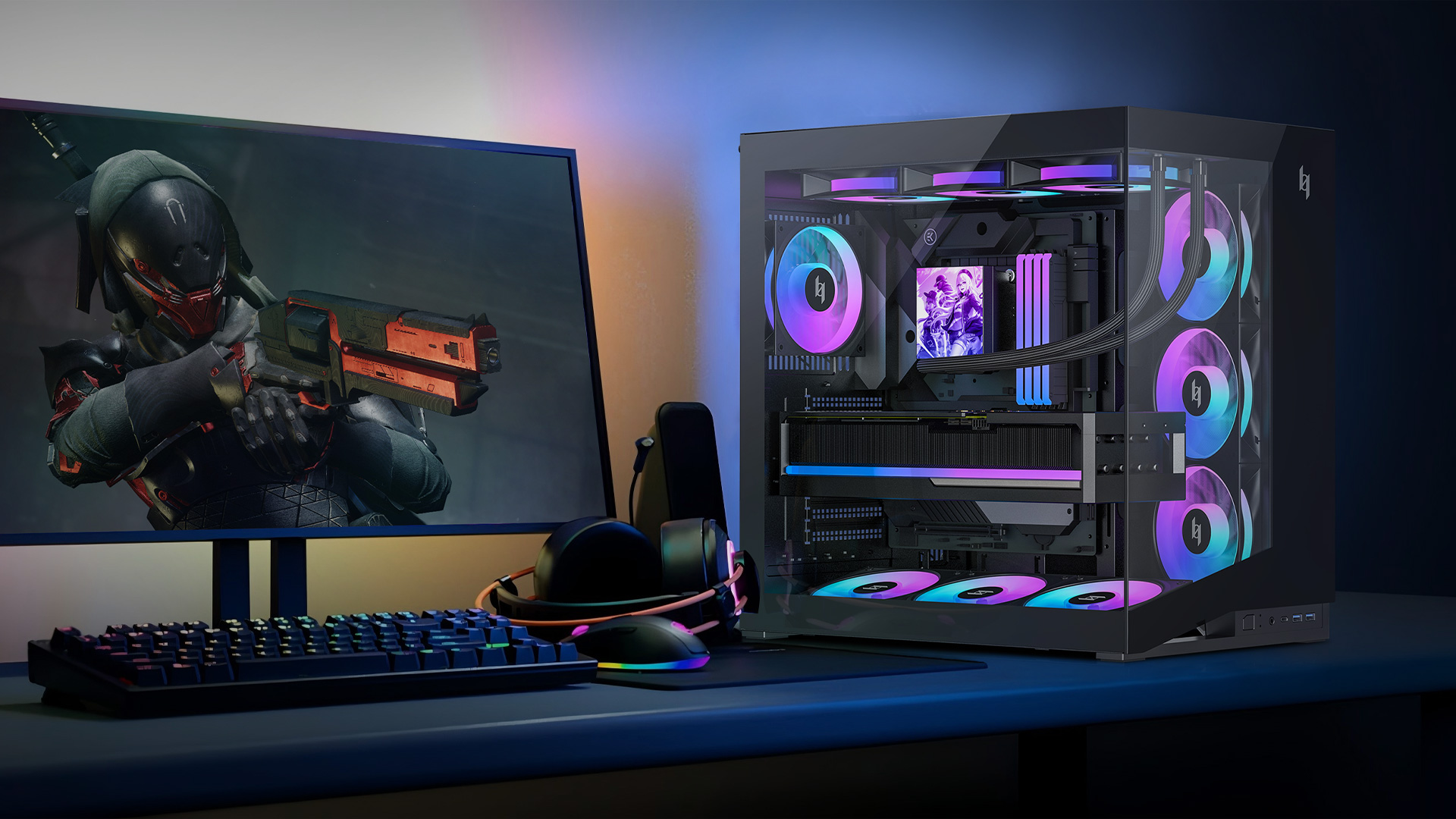

270° PANORAMIC VIEW
Borderless design with 4mm tempered glass on the front and side, offering an unobstructed view of hardware and lighting effects.

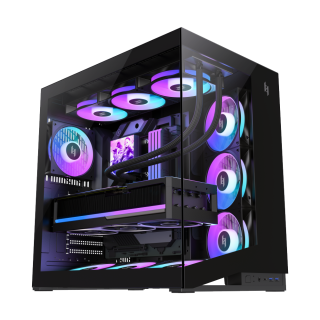

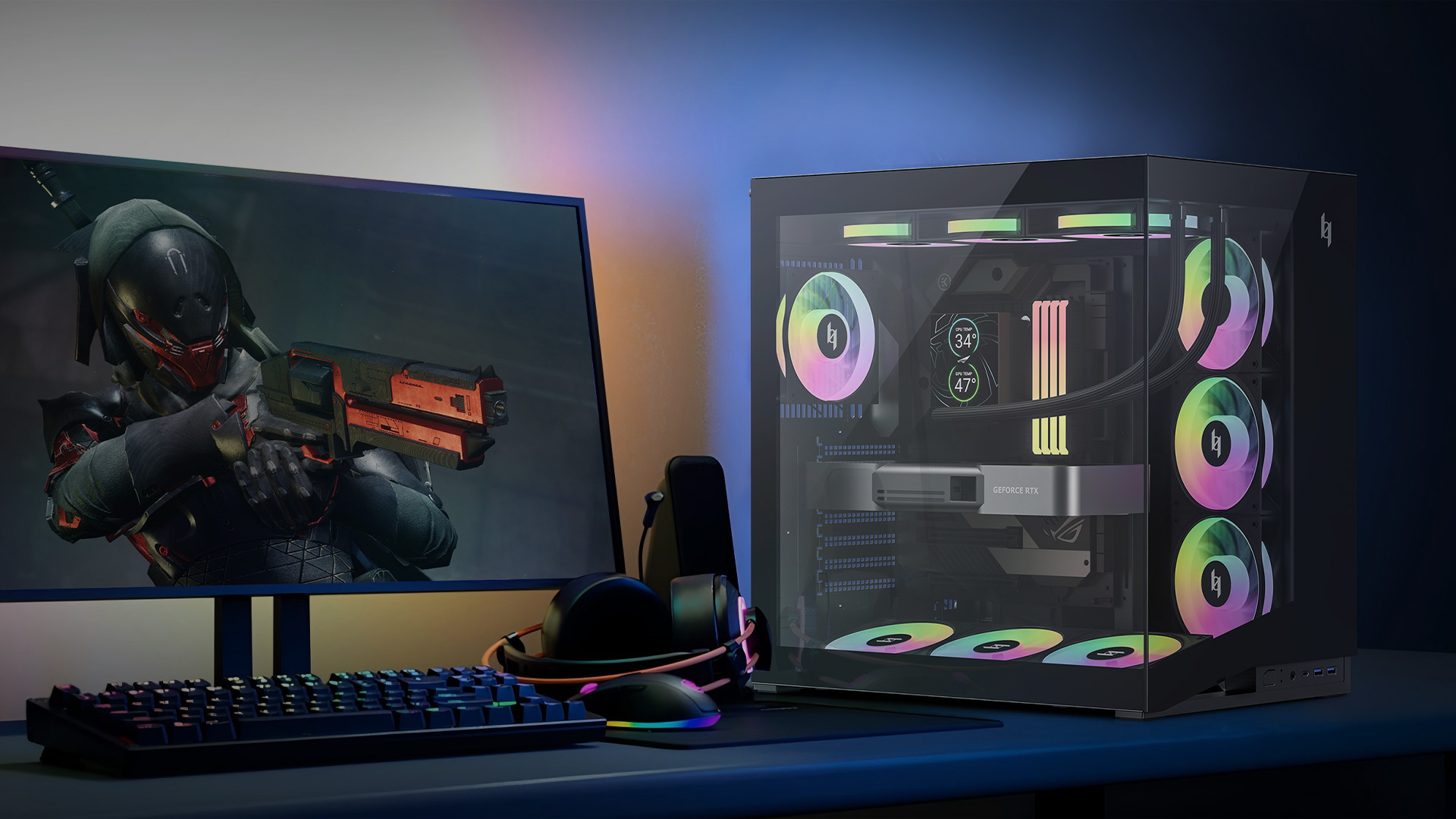

NEX C56 BK
ATX GAMING CASE
02

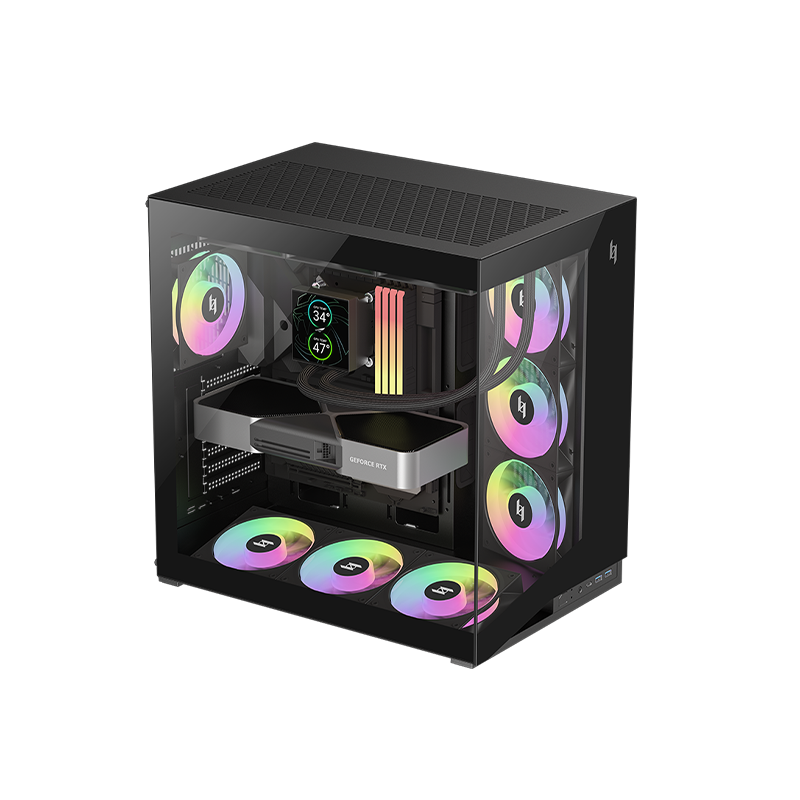

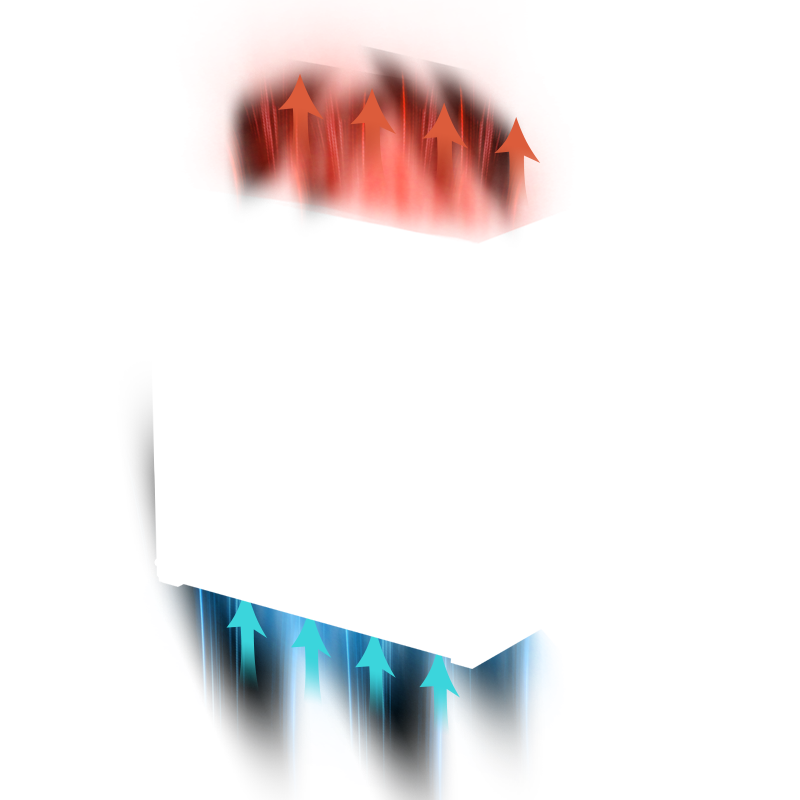

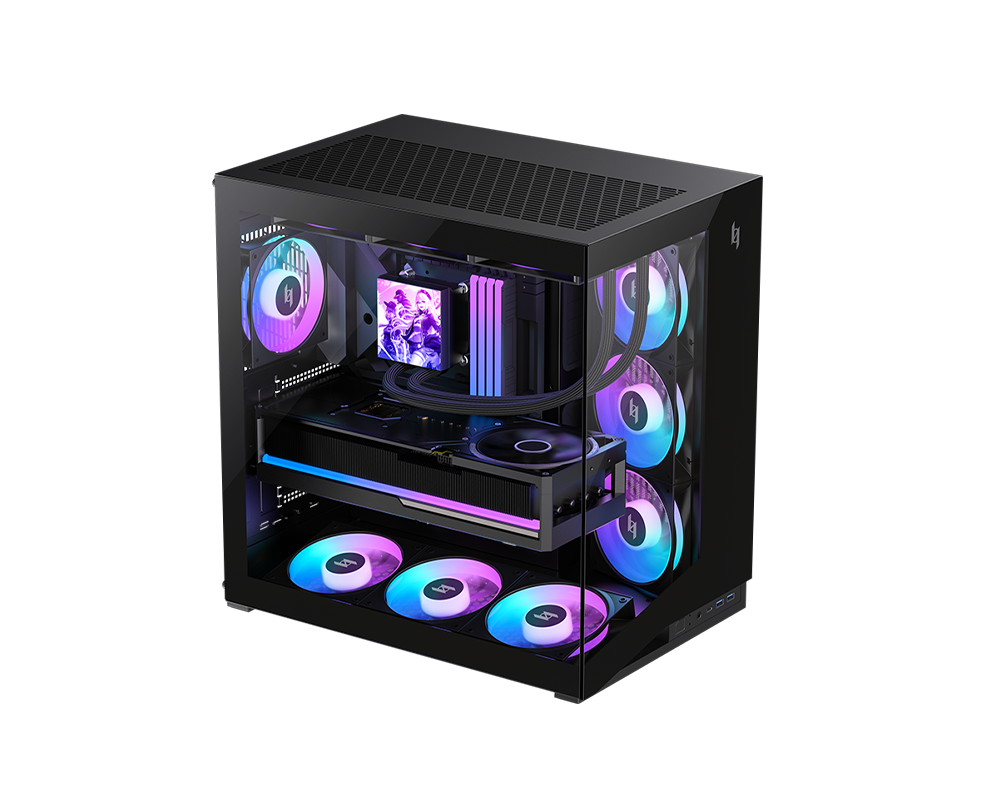

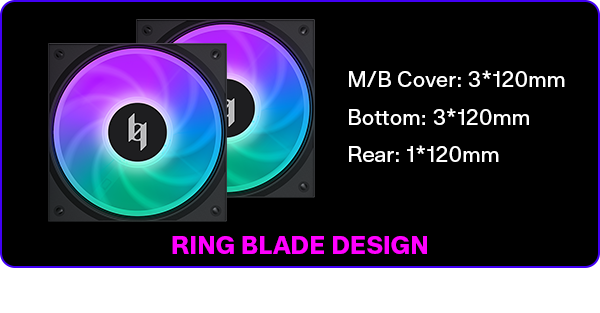

EXTENSIVE COOLING SUPPORT
Supports up to 10x 120mm fans or a combination of 7x 120mm + 2x140mm fans.Pre-installed with 7x 120mm ARGB/PWM fans for optimal airflow and lighting.
03

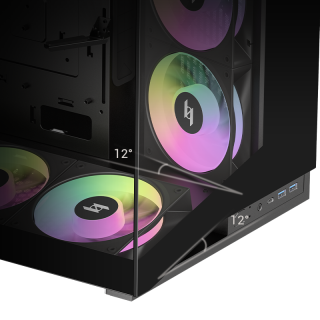

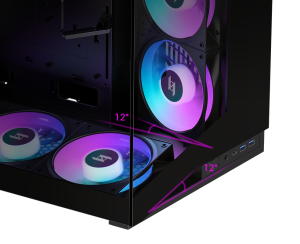

12° INCLINED AIRFLOW DESIGN
Bottom and right-side intake fans are angled at 12°, creating an optimized airflow channel to accelerate heat dissipation.
Reinforced and convenient

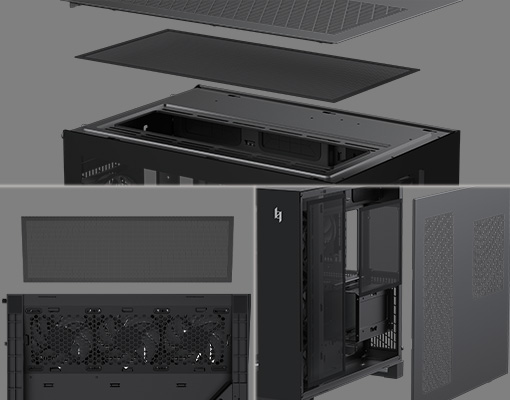

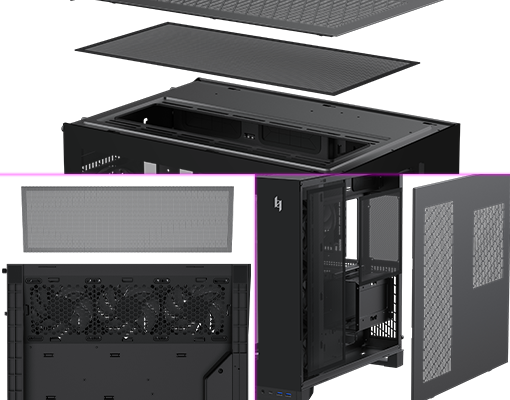

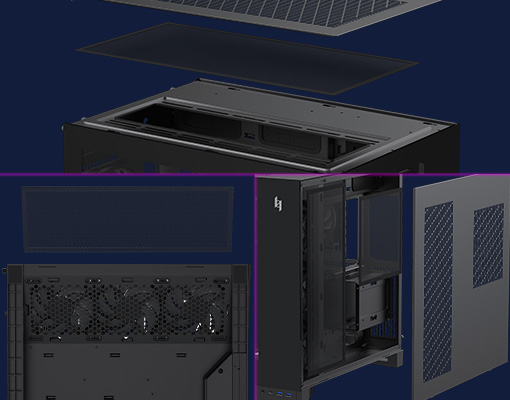

Comprehensive Dust Protection

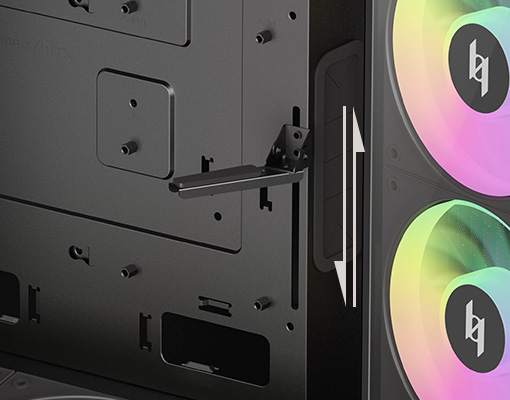

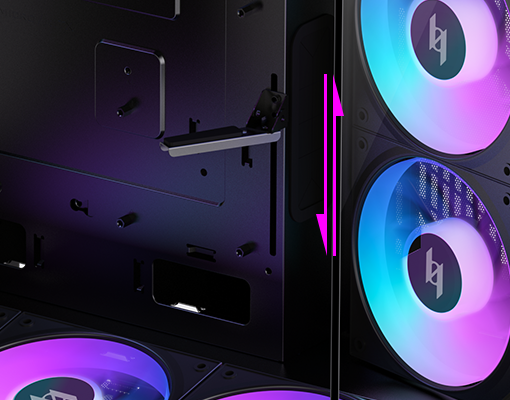

Integrated GPU Support Bracket

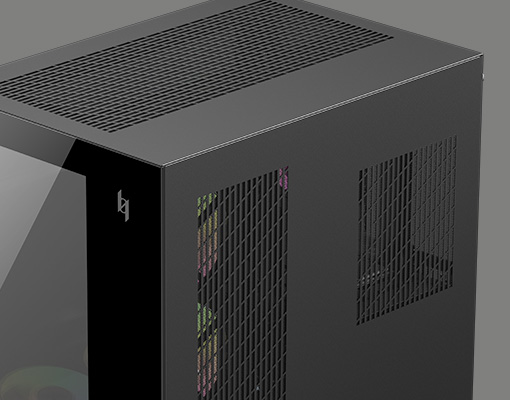

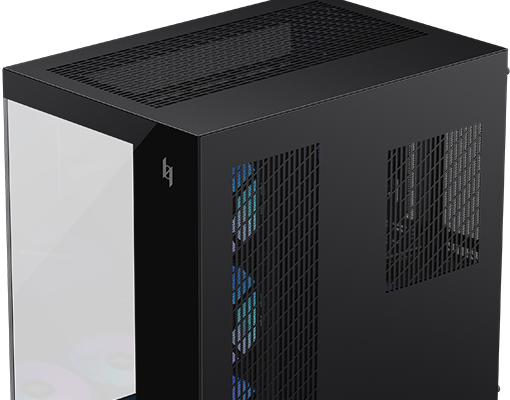

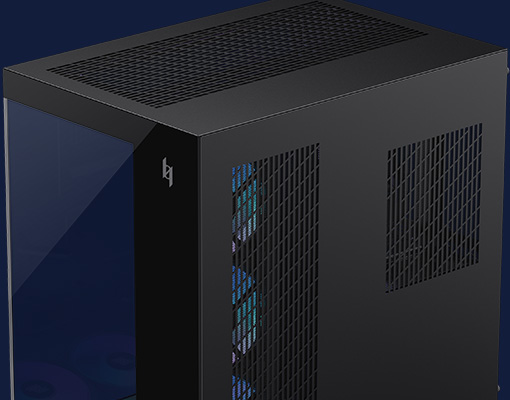

Integrated Stamped Grille Design

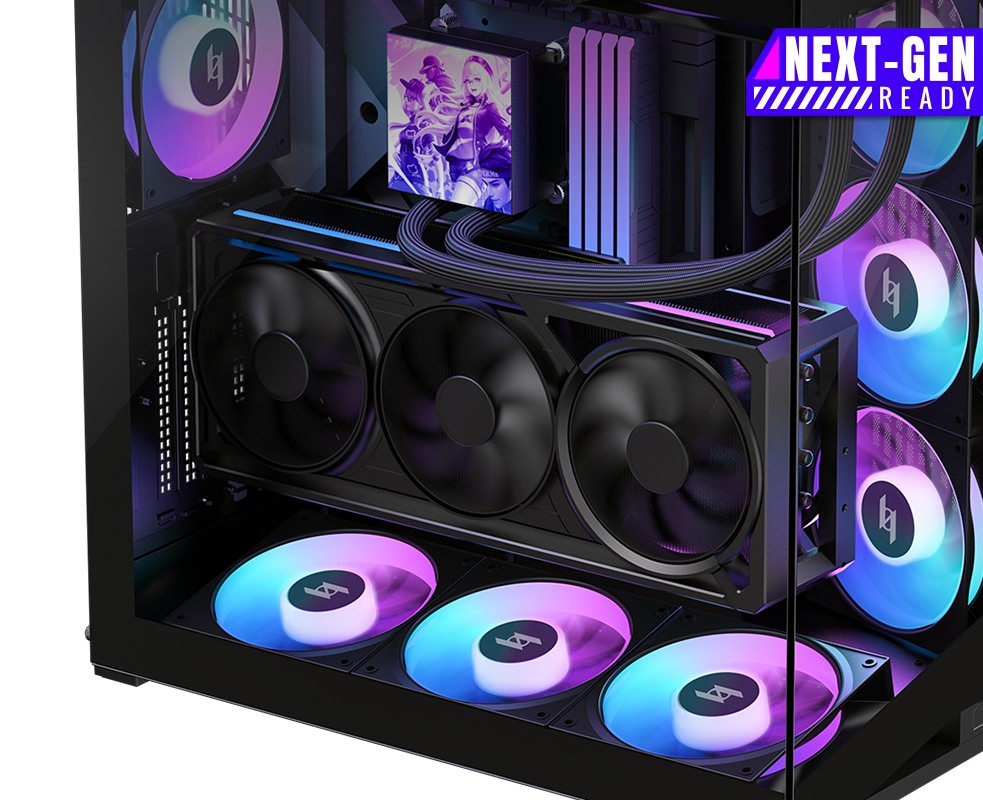

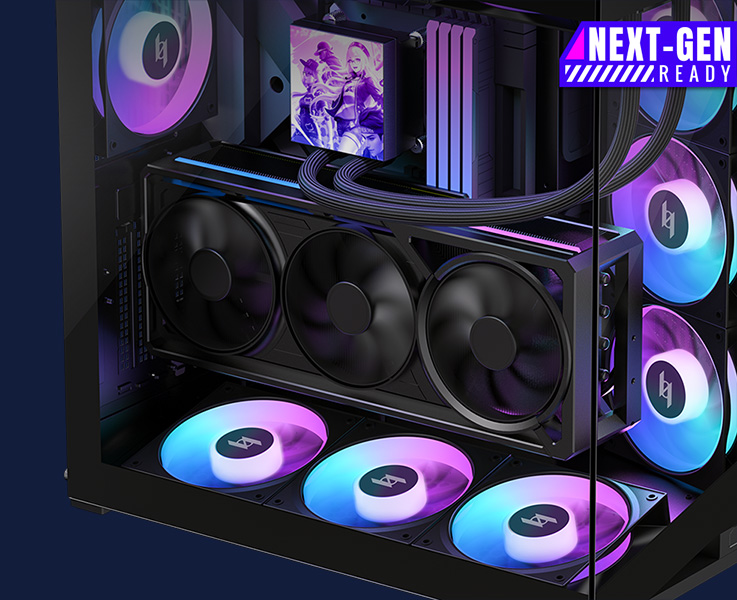

VERTICAL GPU SUPPORT
Supports vertical graphics card installation without compromising bottom fan placement for airflow.
Compatibility
Compatibility and size
Tech Specs
Technical specifications
| Product Dimensions | 430×300×445mm(L×W×H) |
| Carton Dimensions | 504×373×527mm(L×W×H) |
| Net Weight | Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | ITX / M-ATX / ATX |
| Front I/O Ports | USB3.0×2、Tpye-C×1、Audio×1 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 |

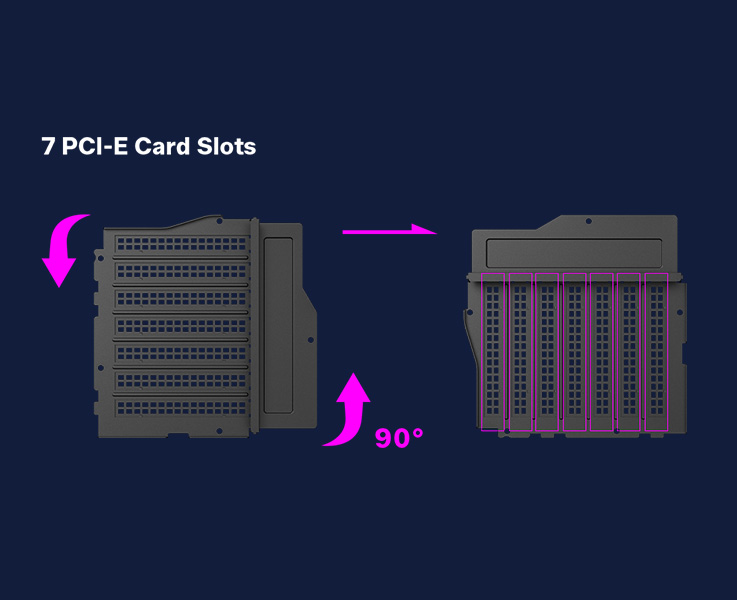

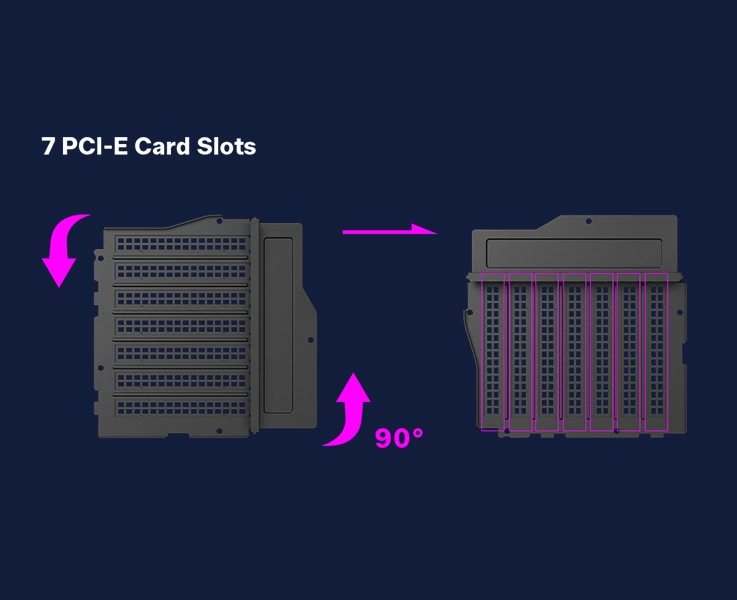

| Expansion Slots | 7 Slots |

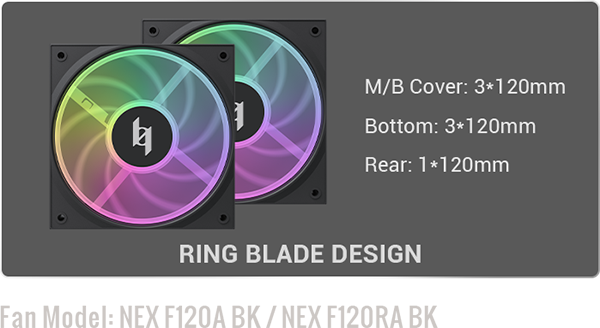

| Pre-Installed Fans | Bottom: 3×120mm M/B: 3×120mm Rear: 1×120mm |
| Fan Support | M/B: 3×120mm Rear: 1×120 / 1×140mm Bottom: 3×120mm Top: 3×120 / 2×140mmmm |
| Radiator Support | Top: 120/240/280/360mm M/B: 120/240/360mm Rear: 120mm |
| CPU Cooler Height Limit | 183mm |
| GPU Length Limit | 425mm |
| Power Supply Type | ATX PS2 （maximum length: 200mm） |
Review Doc
Downloads and documents
Official review materials and downloadable product documents.
The product displays on the above pages are for reference only, may have slight differences from the actual products, and the actual products shall prevail in all cases.
