Angled bottom fan

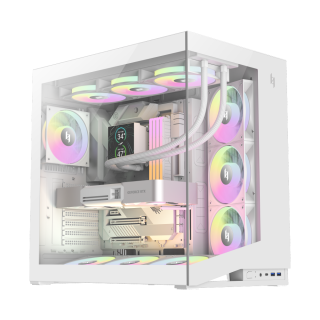

NEX C56 WH
• 4mm tempered glass on front, side delivering a panoramic view.• 12° inclined bottom and right-side intake fans for optimized airflow and faster heat dissipation.• Dual-chamber layout with support for ATX motherboards, 425mm GPUs, 182mm CPU coolers, 220mm PSUs, dual 360mm radiators, and 2×HDD + 2×SSD.• Cooling capacity:NEX C56 – up to 10×120mm or 6×120mm + 3×140mm; includes 7×120mm ARGB/PWM fans.• I/O panel with USB-C (USB 3.2 Gen2x2) and 2× USB-A (USB 3.2 Gen1).• Vertical GPU installation supported without blocking bottom airflow.• Included height-adjustable GPU support bracket to prevent sagging.• Magnetic dust filters on top, bottom, and right side.
...

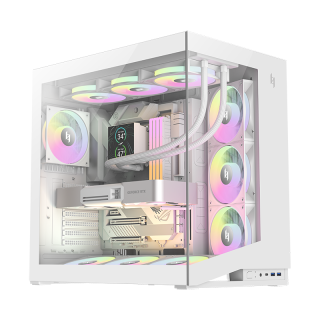

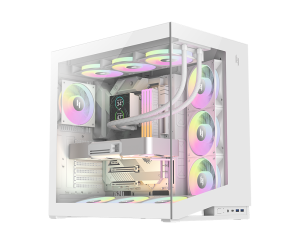

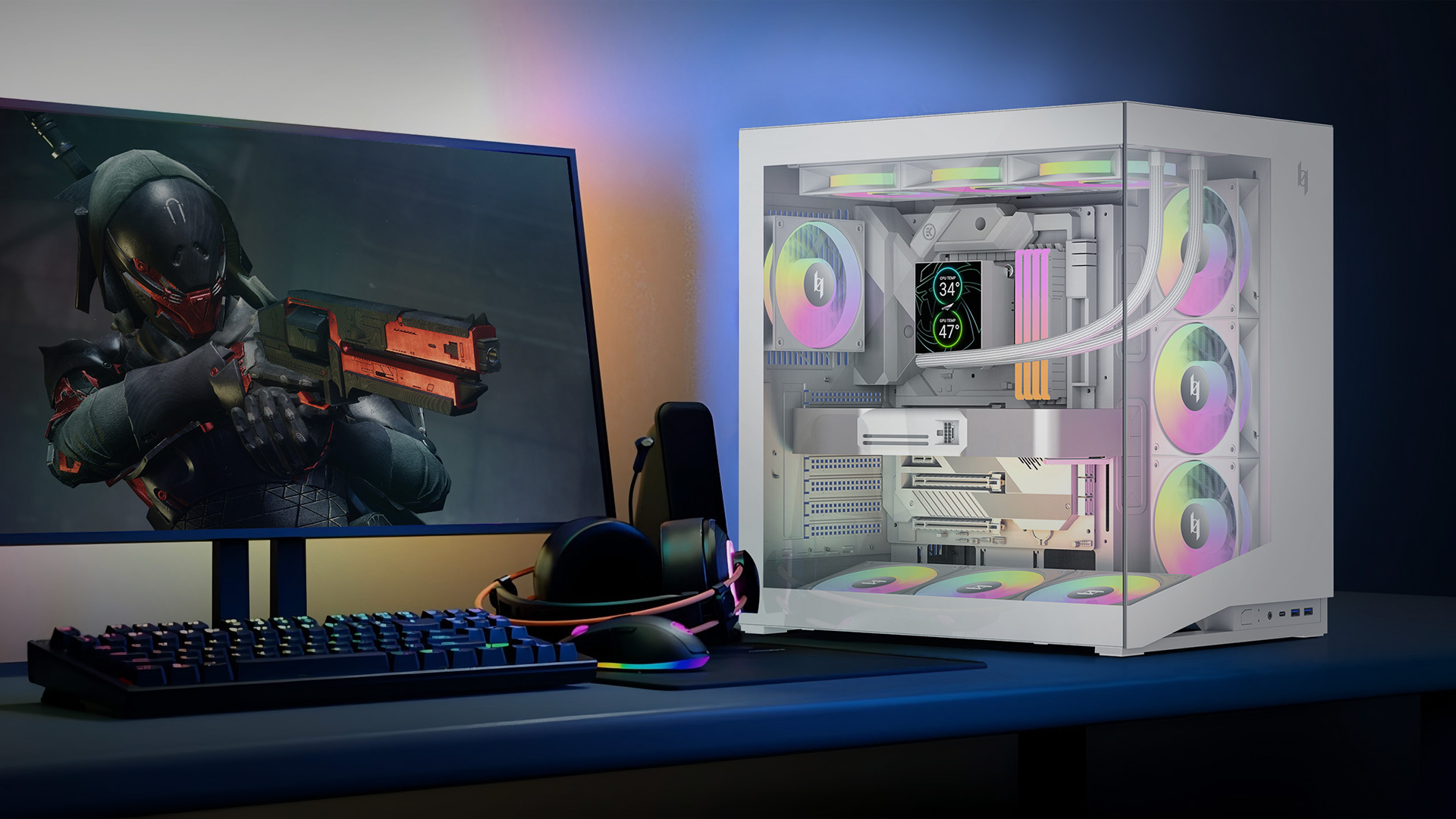

270° PANORAMIC VIEW
Borderless design with 4mm tempered glass on the front and side, offering an unobstructed view of hardware and lighting effects.

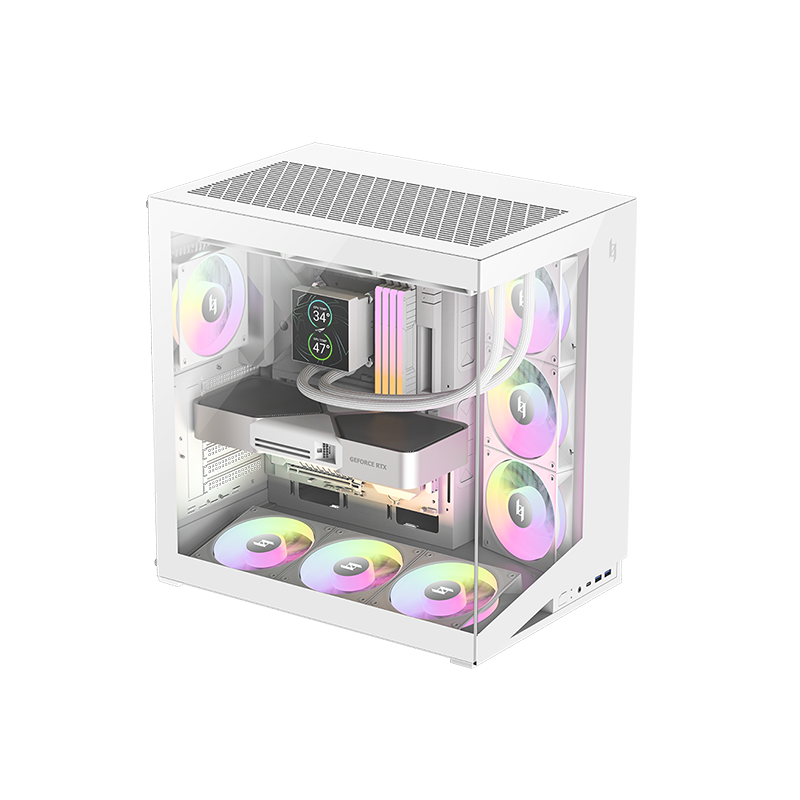

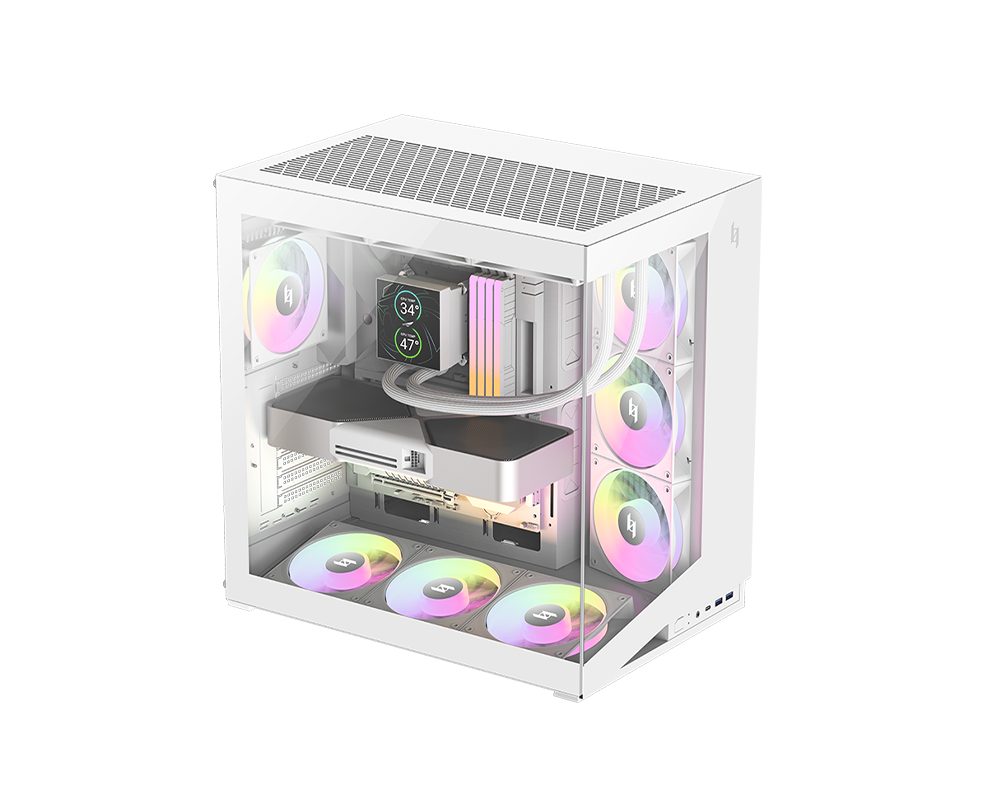

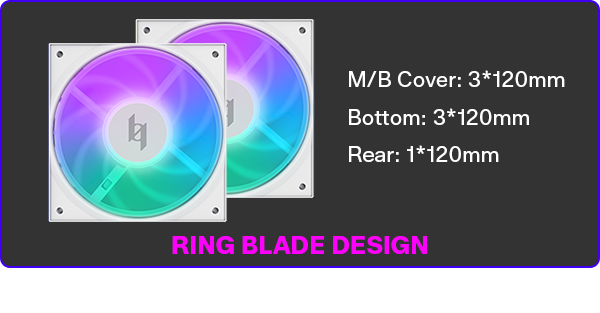

EXTENSIVE COOLING SUPPORT
Supports up to 10x 120mm fans or a combination of 7x 120mm + 2x140mm fans.Pre-installed with 7x 120mm ARGB/PWM fans for optimal airflow and lighting.

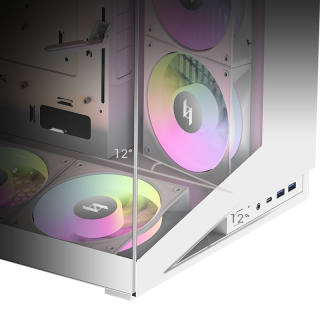

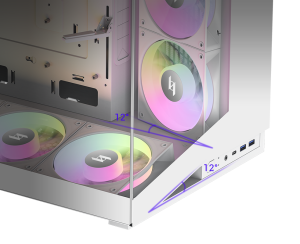

12° INCLINED AIRFLOW DESIGN
Bottom and right-side intake fans are angled at 12°, creating an optimized airflow channel to accelerate heat dissipation.
REINFORCED AND CONVENIENT

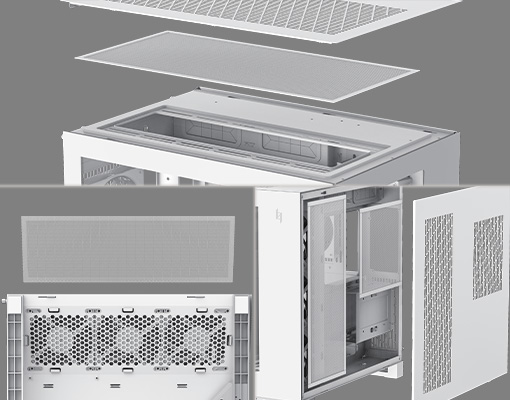

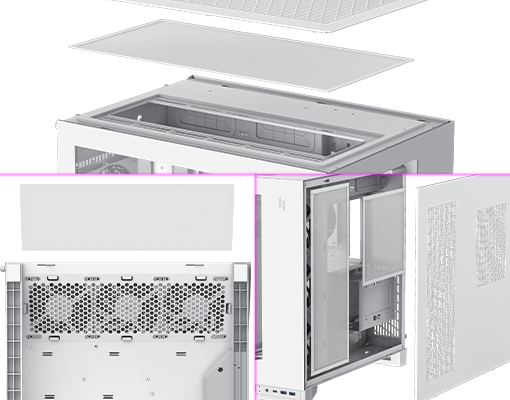

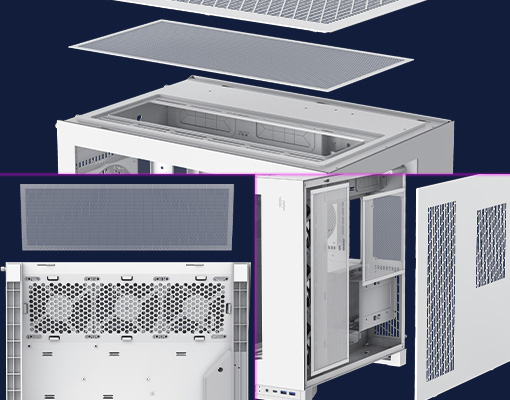

Comprehensive Dust Protection

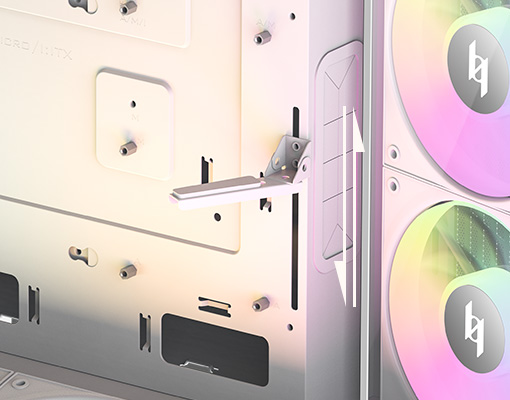

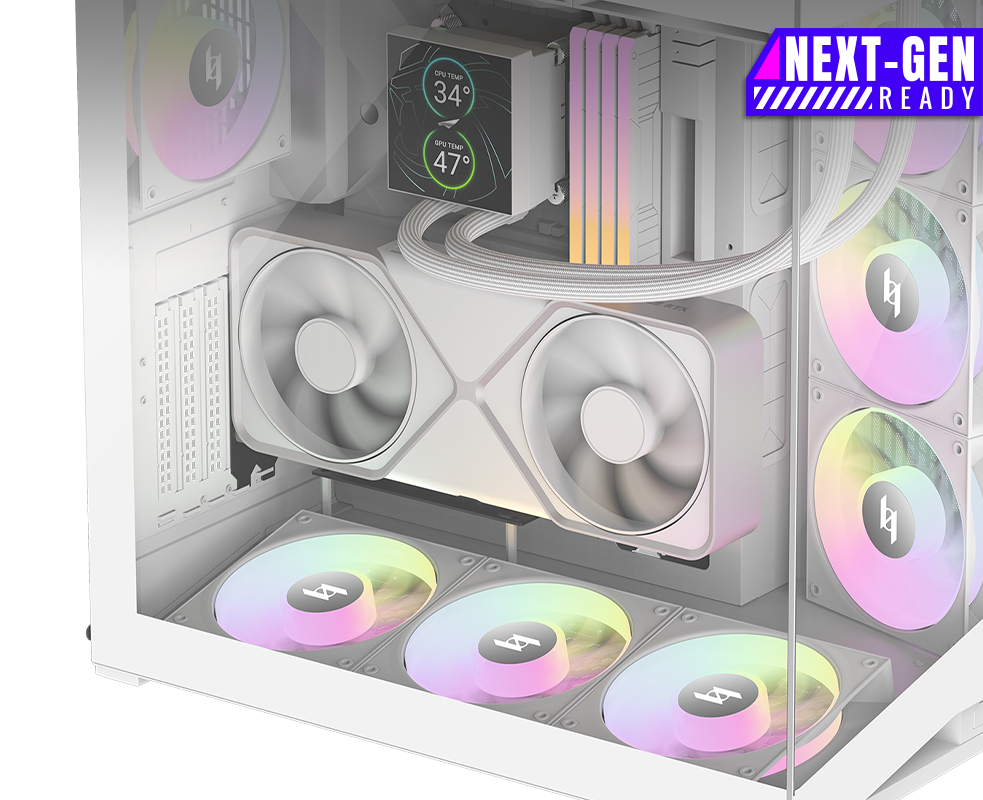

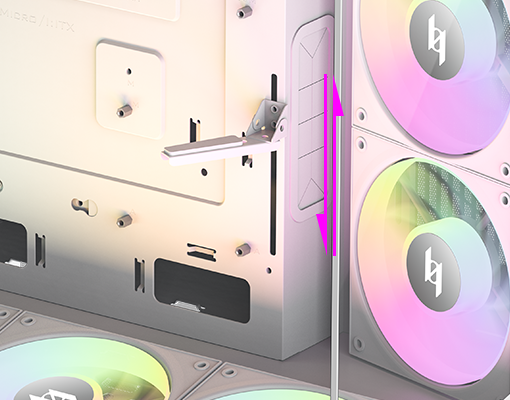

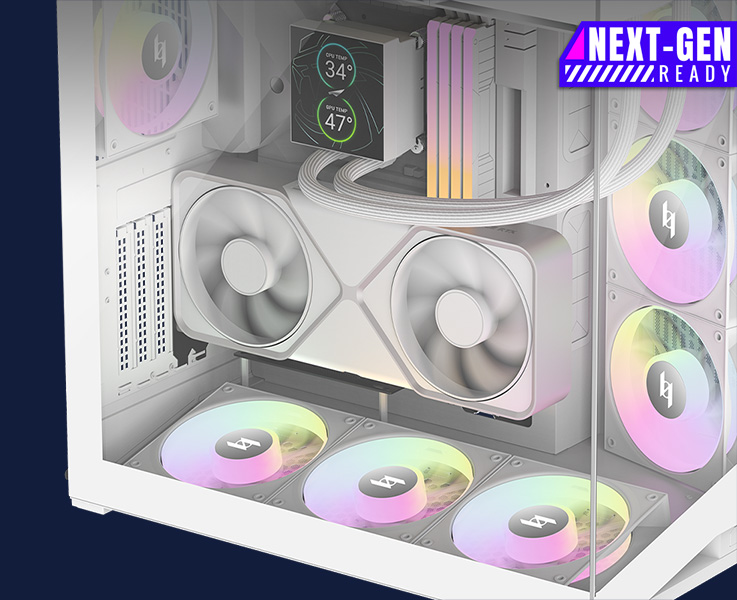

Integrated GPU Support Bracket

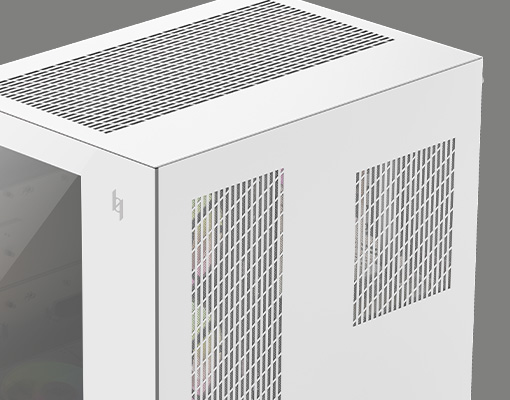

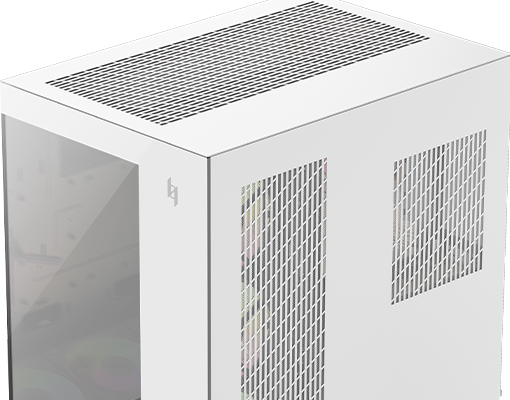

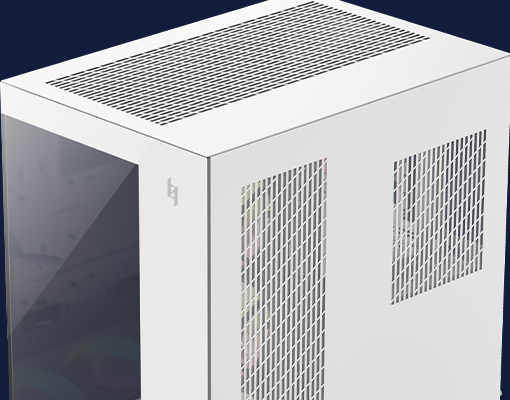

Integrated Stamped Grille Design
COMPATIBILITY AND SIZE
Size
I/O Panel
M/B: ATX / M-ATX / ITX
CPU Cooler Height: 175mm
VGA Length: 410mm
PSU: ATX Power Length 200mm
3.5"HDD x2 or
3.5"HDDx1+2.5"SSDx1
Top: 3x120mm/2x140mm fans (optional)
Front: 3x120mm fans (pre-installed)
Bottom: 3x120mm fans (pre-installed)
Rear: 1x120mm fan (pre-installed)
Top: 120/240/280/360mm (optional)
Front: 120/240/360mm (optional)
Rear: 120mm (optional)
The product displays on the above pages are for reference only, may have
slight differences from the actual products, and the actual products shall
prevail in all cases.
| Product Dimensions | 430×300×445mm(L×W×H) |
| Carton Dimensions | 504×373×527mm(L×W×H) |
| Net Weight | Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | ITX / M-ATX / ATX |
| Front I/O Ports | USB3.0×2、Tpye-C×1、Audio×1 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 |

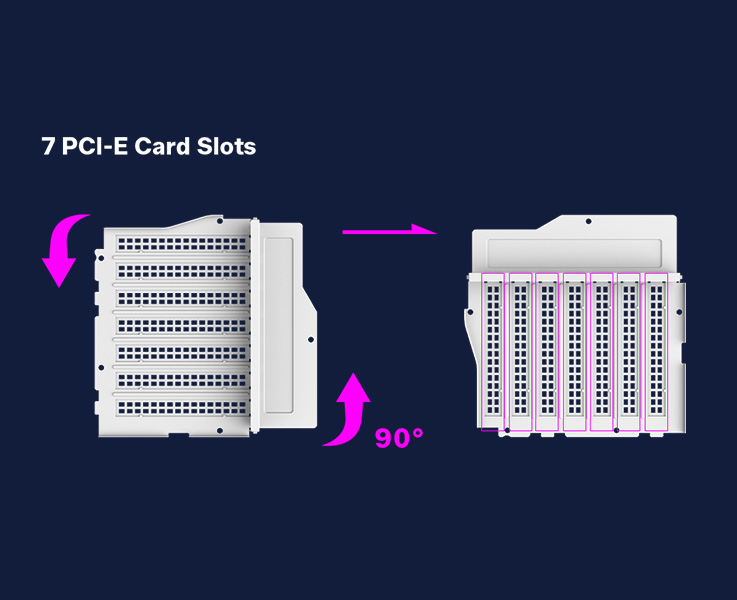

| Expansion Slots | 7 Slots |

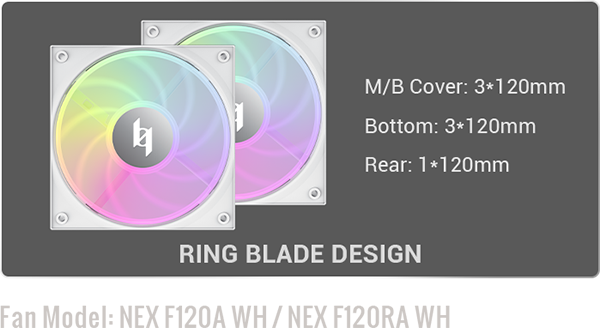

| Pre-Installed Fans | Bottom: 3×120mm M/B: 3×120mm Rear: 1×120mm |
| Fan Support | M/B: 3×120mm Rear: 1×120 / 1×140mm Bottom: 3×120mm Top: 3×120 / 2×140mmmm |
| Radiator Support | Top: 120/240/280/360mm M/B: 120/240/360mm Rear: 120mm |
| CPU Cooler Height Limit | 183mm |
| GPU Length Limit | 425mm |
| Power Supply Type | ATX PS2 （maximum length: 200mm） |
