12° INCLINED AIRFLOW DESIGN

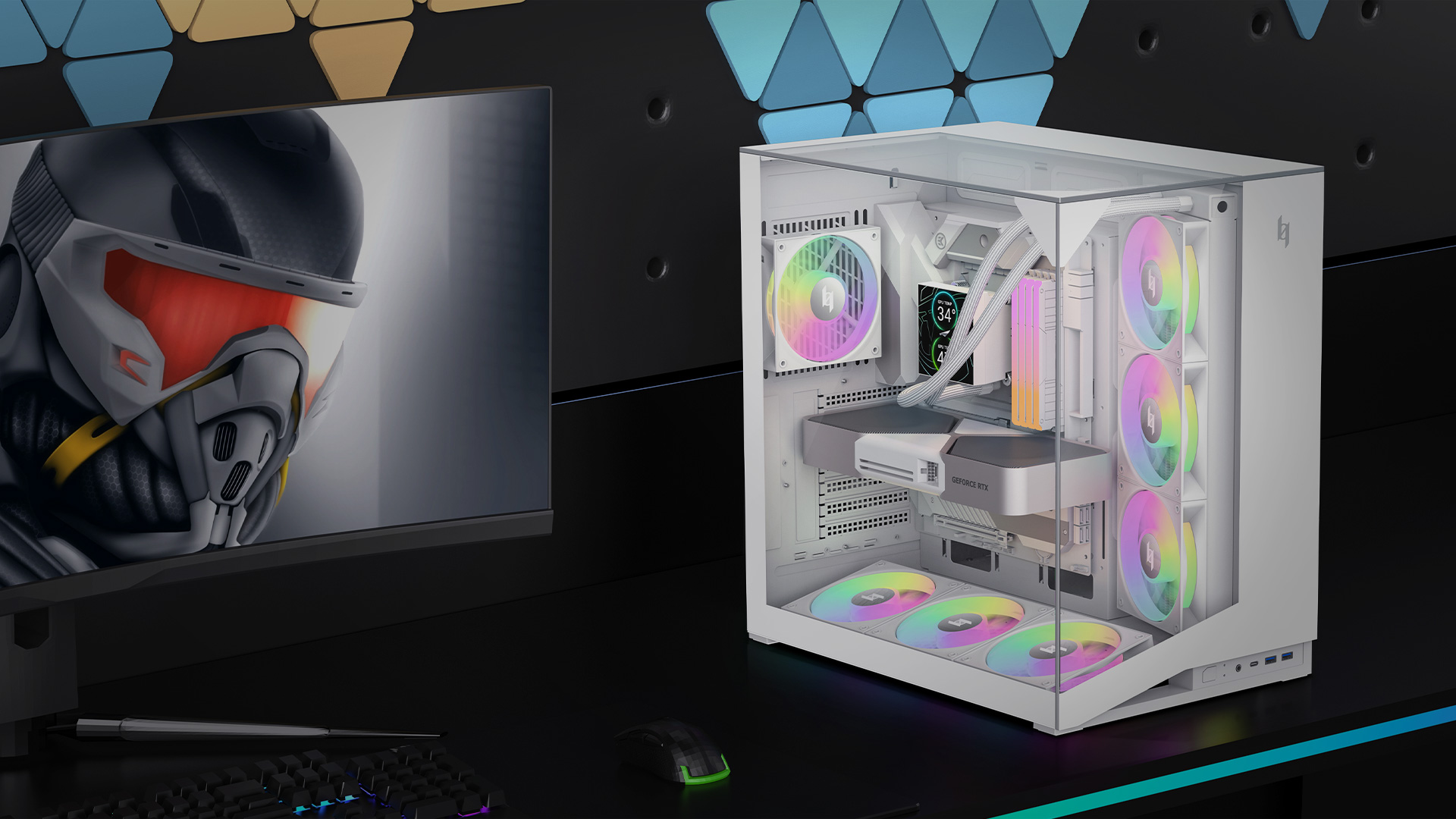

NEX C56 VC WH

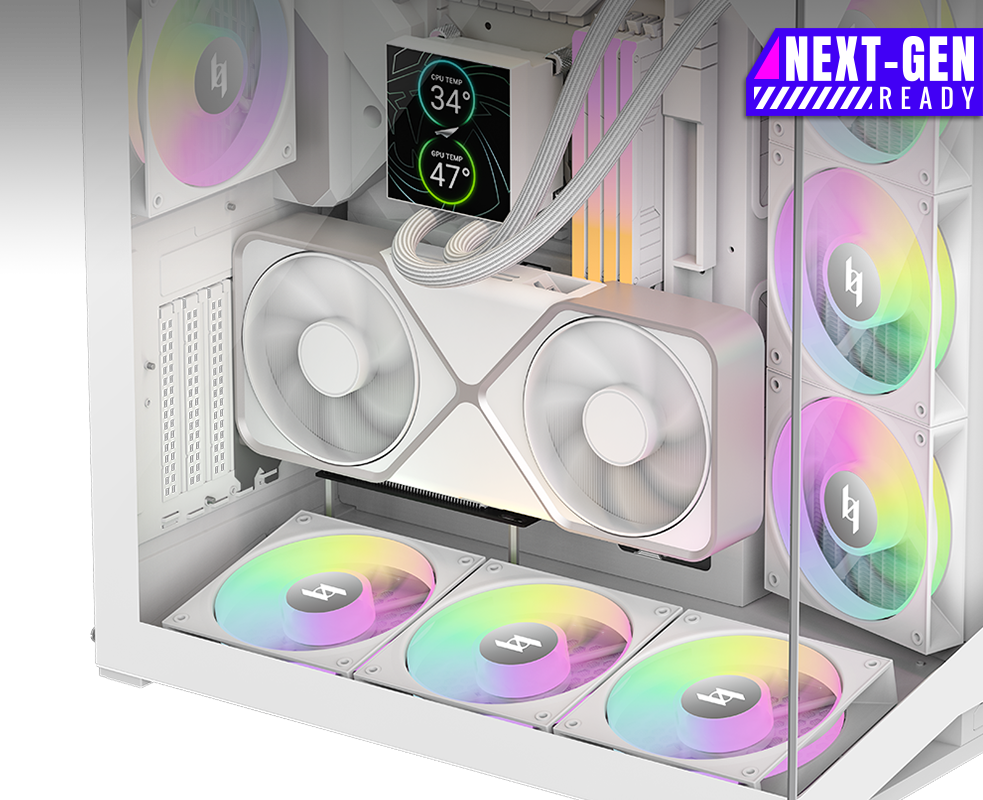

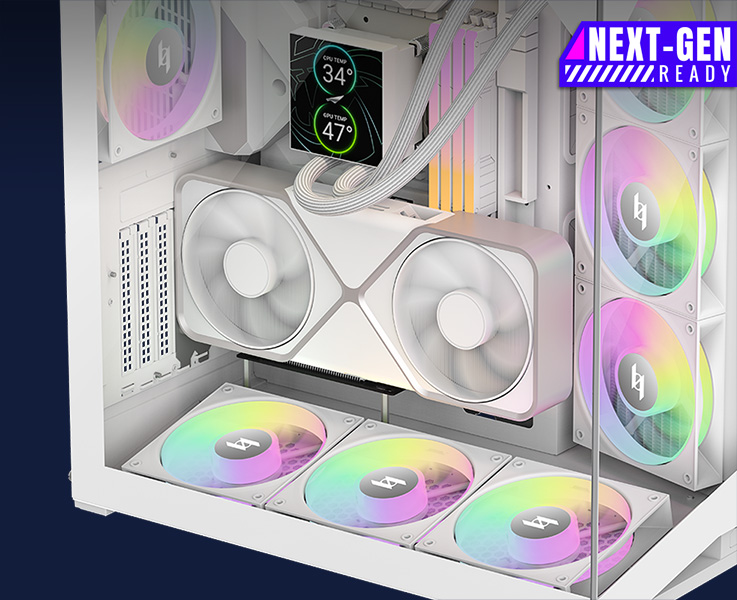

• 4mm tempered glass on front, side, and top delivering a panoramic view.• 12° inclined bottom and right-side intake fans for optimized airflow and faster heat dissipation.• Dual-chamber layout with support for ATX motherboards, 425mm GPUs, 182mm CPU coolers, 220mm PSUs, dual 360mm radiators, and 2×HDD + 2×SSD.• Cooling capacity: Up to 7×120mm or 6×120mm + 1×140mm; includes 4×120mm ARGB/PWM fans.• I/O panel with USB-C (USB 3.2 Gen2x2) and 2× USB-A (USB 3.2 Gen1).• Vertical GPU installation supported without blocking bottom airflow.• Included height-adjustable GPU support bracket to prevent sagging.• Magnetic dust filters on bottom, and right side.
...

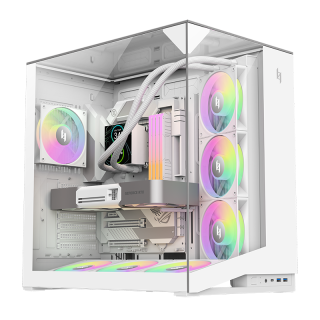

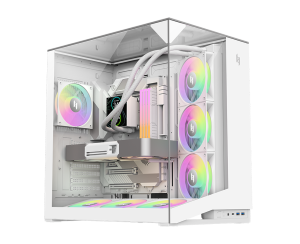

270° PANORAMIC VIEW
Borderless design with 4mm tempered glass on the front top and side, offering an unobstructed view of hardware and lighting effects.

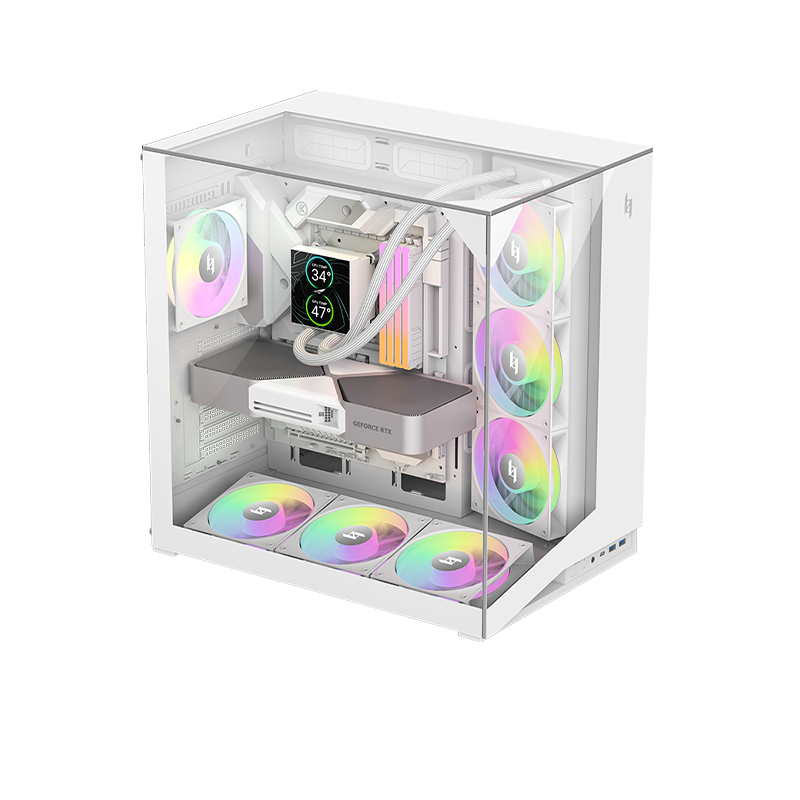

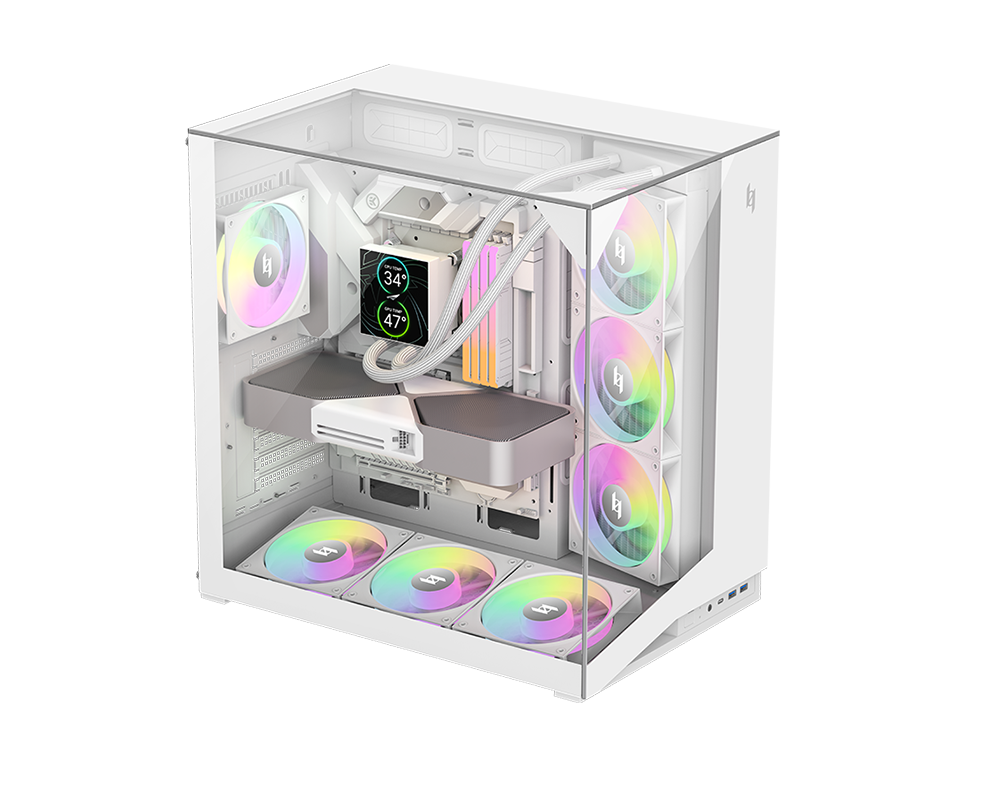

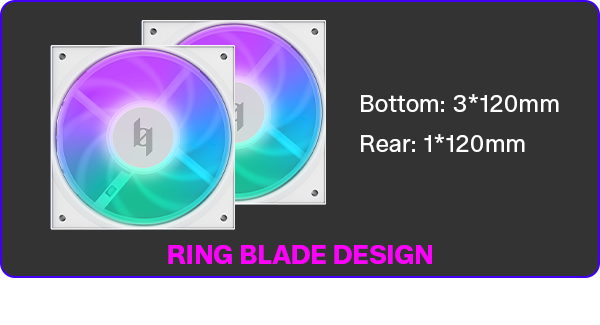

EXTENSIVE COOLING SUPPORT
Supports up to 7x 120mm fans. Pre-installed with 4x 120mm ARGB/PWM fans for optimal airflow and lighting

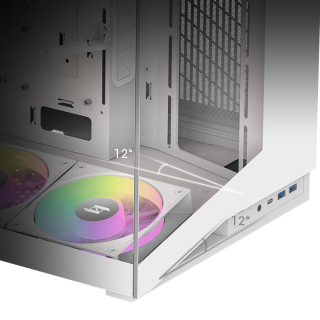

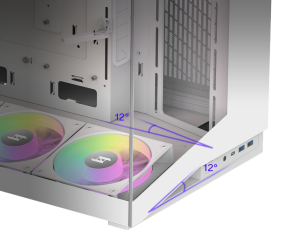

12° INCLINED AIRFLOW DESIGN
Bottom and right-side intake fans are angled at 12°, creating an optimized airflow channel to accelerate heat dissipation.
REINFORCED AND CONVENIENT

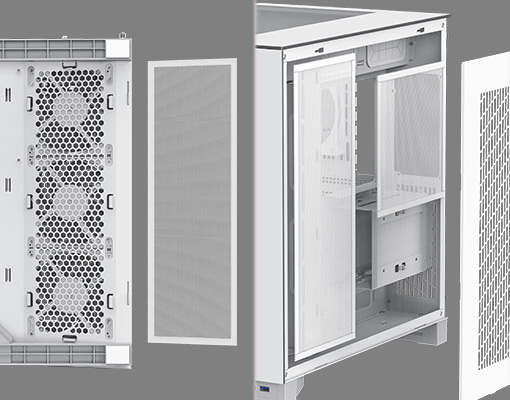

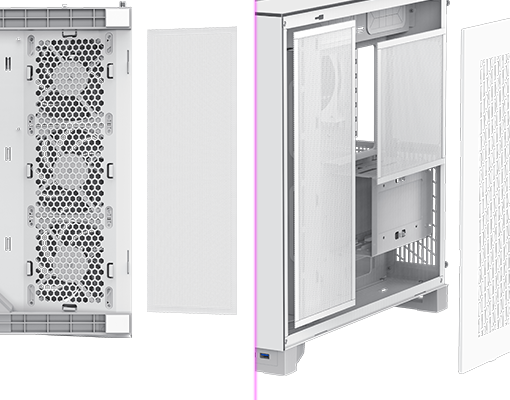

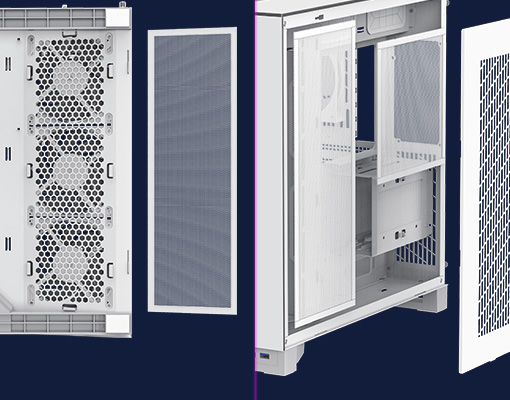

Comprehensive Dust Protection

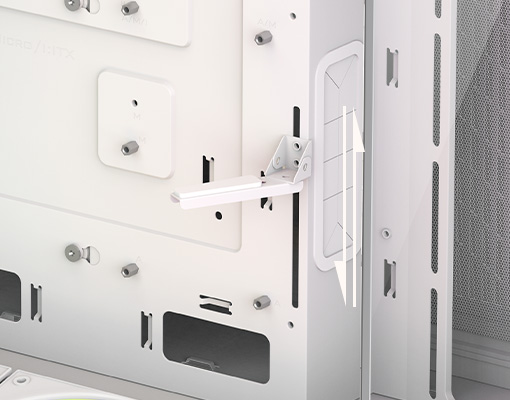

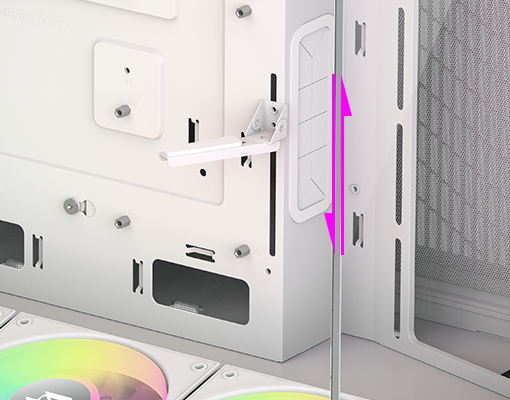

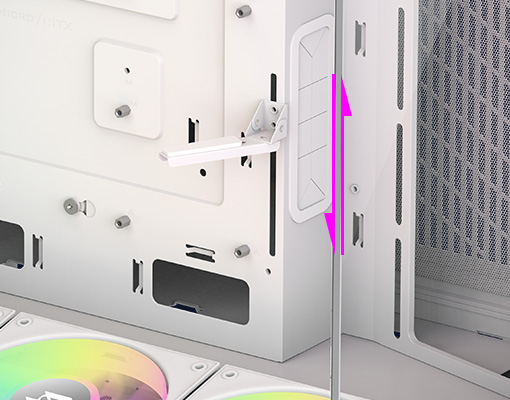

Integrated GPU Support Bracket

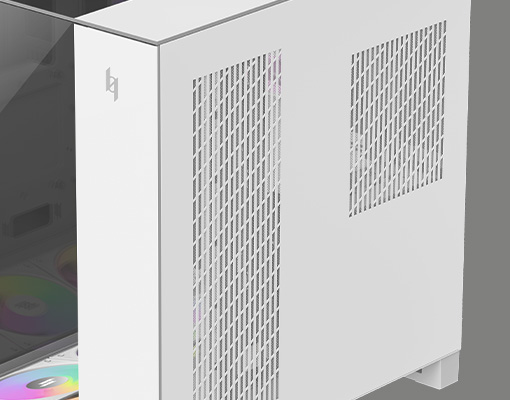

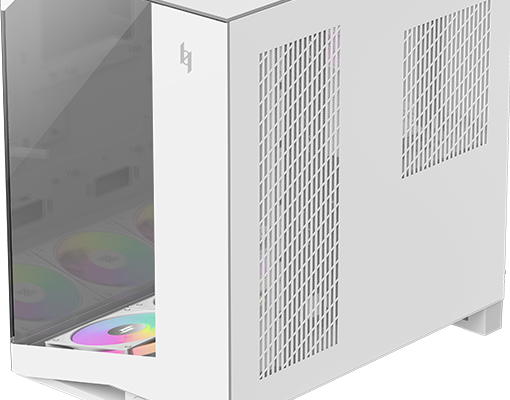

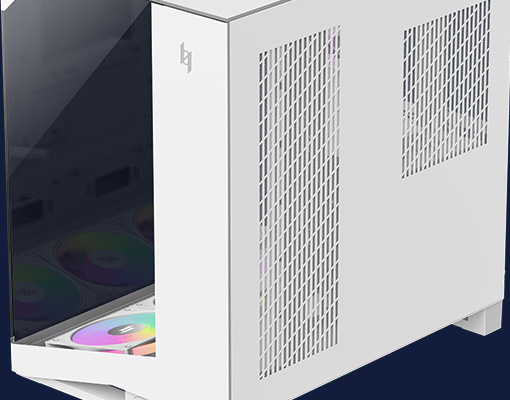

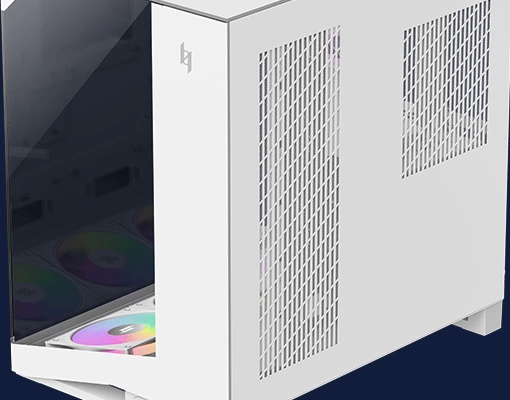

Integrated Stamped Grille Design
COMPATIBILITY AND SIZE
Size
I/O Panel
M/B Support：ATX / M-ATX / ITX
CPU Cooler Height：183mm
VGA Length：425mm
3.5"HDD x2 + 2.5"SSD x2

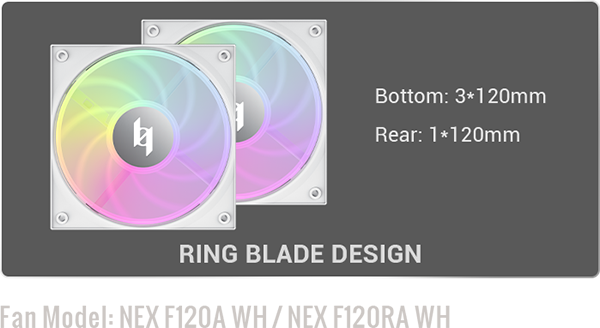

Bottom: 3x120mm (pre-installed)
Rear: 1x120mm (pre-installed)/1x140mm (optional)
M/B: 3x120mm fans (optional)
Front: 120/240/360mm (optional)
Rear: 120mm (optional)
The product displays on the above pages are for reference only, may have
slight differences from the actual products, and the actual products shall
prevail in all cases.
| Product Dimensions | 430×300×448mm(L×W×H) |
| Carton Dimensions | 503×382×532mm(L×W×H) |
| Net Weight | Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | ITX / M-ATX / ATX |
| Front I/O Ports | USB3.0×2、Tpye-C×1、Audio×1 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 |

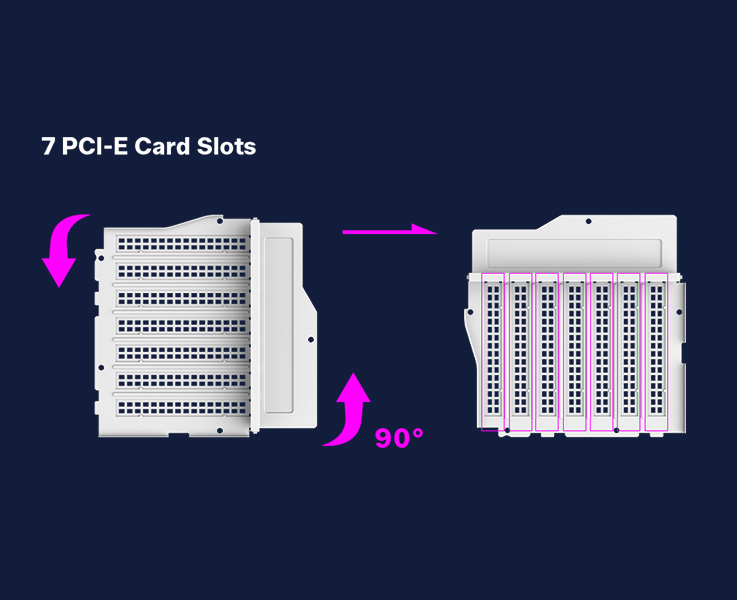

| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Bottom: 3×120mm Rear: 1×120mm |
| Fan Support | M/B: 3×120mm Rear: 1×120 / 1×140mm Bottom: 3×120mm |
| Radiator Support | M/B: 120/240/360mm Rear: 120mm |
| CPU Cooler Height Limit | 183mm |
| GPU Length Limit | 425mm |
| Power Supply Type | ATX PS2 （maximum length: 200mm） |
