A PC case for a 360mm radiator needs more than just a mounting bracket — it needs enough depth, enough GPU clearance, and enough room for tubes and thick fans. This guide covers where a 360mm AIO actually fits, what to check before you buy, and which XERON cases clear the biggest coolers.
Quick Answer: Will My Case Fit a 360mm Radiator?
| Check | What to Look For | Typical Requirement |
|---|---|---|
| Mount position | Top, front, or side bracket for 3x 120mm or 3x 140mm | At least one marked 360mm |
| Case depth | Internal clearance from motherboard to side panel | 360mm radiator = 27-38mm thick, plus tubes |
| GPU clearance | Max length the case supports | Most 360 cases clear 330-420mm GPUs |
| RAM height | With top-mount radiator, tall RAM can clash | Low-profile RAM or front mount |
| Fan thickness | Push or pull config, thick fans (25mm) vs slim (15mm) | Stack thickness must fit bracket depth |
If the spec sheet says supports 360mm top or front, you are 90% there. The other 10% is measuring your GPU and RAM before you order.

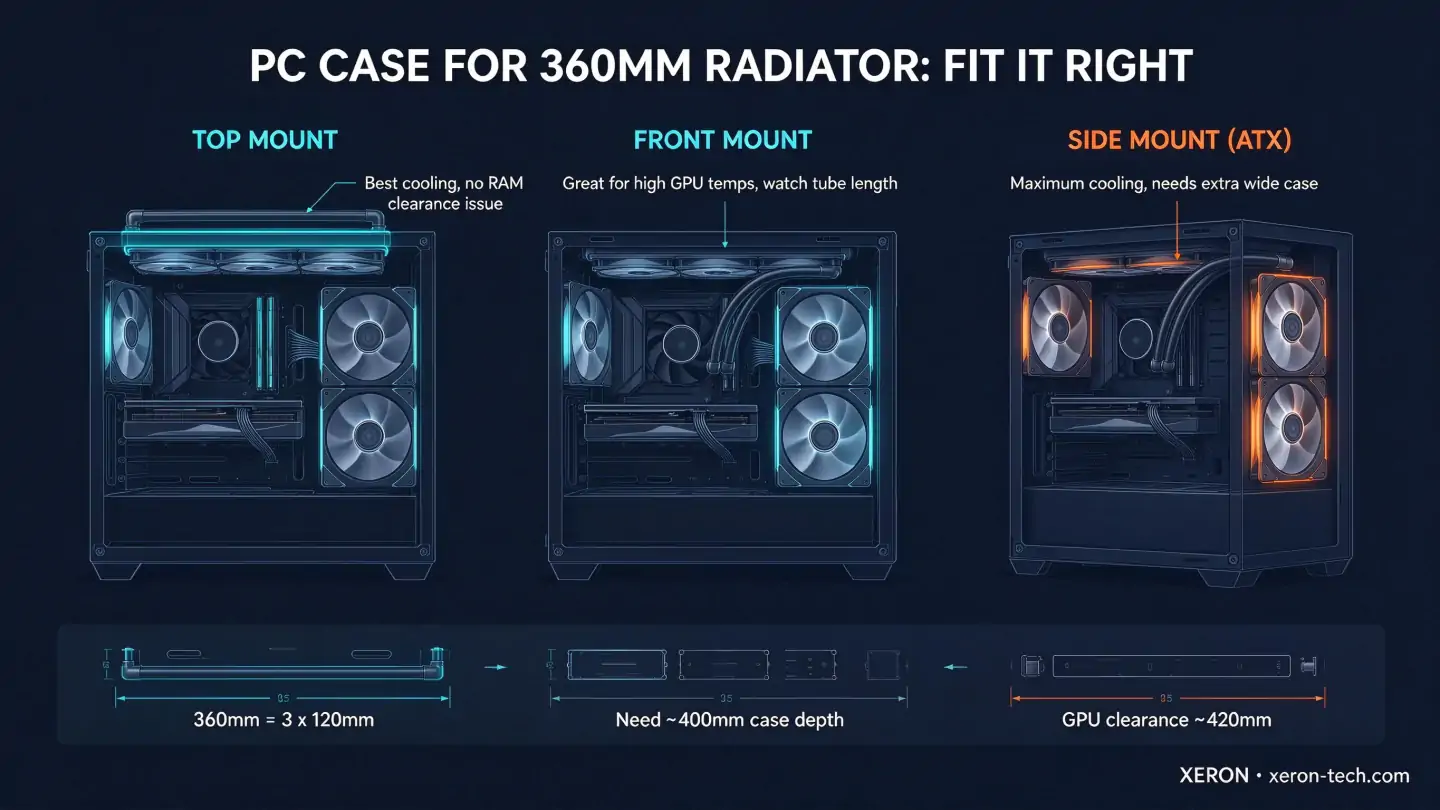

Top Mount vs Front Mount vs Side Mount
A 360mm radiator is three 120mm fans side by side. Where you mount it changes thermals, tubing, and clearance:
| Mount | Best For | Watch Out For |
|---|---|---|
| Top mount | Best CPU temps, natural exhaust, RAM-friendly in most cases | Tall RAM can hit radiator; thick fans reduce clearance |
| Front mount | Cools GPU indirectly, great for high-end builds, no RAM clash | Tubes reach the CPU, need enough tubing length; looks busy from glass side |
| Side mount | Maximum radiator space, flagship cooling loops | Needs an extra-wide case; blocks side glass view of GPU |
Most people should choose top mount if their case supports it and their RAM is low profile. Front mount is the safer pick for tall RAM or when the top bracket is too shallow.
What to Measure Before You Buy
Three measurements decide if your 360mm AIO will fit without forcing:
| Measurement | How to Check | Why It Matters |
|---|---|---|
| Radiator thickness | 27mm (standard) up to 38mm (thick) plus 25mm fans | Push config = 27+25 = 52mm stack; case must clear that |
| GPU length | Measure your card end to end, check case spec | Bottom-mounted GPUs can hit front-mounted radiators |
| Tube length | AIO tubes are usually 300-400mm | Front mount needs enough reach to the CPU block; top is shortest |
A 360mm radiator is not oversized — it is the sweet spot for a 240W TDP CPU. Anything smaller and you trade noise for temps; anything bigger and the case has to be huge.
XERON Cases That Clear a 360mm Radiator
| Model | 360mm Support | GPU Clearance | Best For |
|---|---|---|---|
 NEX C56 | Top 360mm AIO | 425mm | Value ATX builds, flagship GPUs, top exhaust |
 NEX C Lab | Top 360mm, separate CPU/GPU/PSU channels | Full size | High-end silent builds, flagship cooling |
 NEX S Lab | Top or side 360mm, open frame | Unlimited | Enthusiasts, maximum cooling airflow |
PC Case for 360mm Radiator — FAQ
| Question | Answer |
|---|---|
| Can any case fit a 360mm radiator? | No. The case must have a mounting bracket that supports three 120mm fans in a row. Check the spec sheet for top 360mm, front 360mm, or side 360mm support. A mid-tower that only supports 240mm will not fit. |
| Is a 360mm radiator worth it over 240mm? | For CPUs over 200W, yes. A 360mm runs fans 30-40% slower for the same temps, which means quieter. For a 65W or 100W CPU, a 240mm is enough. |
| Does a 360mm radiator block my RAM? | Only on top mount with tall RAM (over 45mm). If you have tall RGB RAM, either use front mount or pick low-profile RAM. Most XERON cases have enough top bracket depth for standard RAM. |
| Can I mount a 360mm radiator on the front if my case says front 240mm? | No. The bracket spacing is different. Do not force it — you will damage the radiator or the case. |
| Do thick fans fit with a 360mm radiator? | Check the case spec. Standard 25mm fans plus 27mm radiator = 52mm stack. Some cases only clear 45mm. Use slim 15mm fans or pull config if tight. |
| Is top or front mount better for CPU temps? | Top mount usually runs 2-5 C cooler because exhaust rises naturally. Front mount pulls cool external air but pre-warms it with GPU intake. For most builds, top is the better default. |
| Will a 360mm radiator fit a mini ITX case? | Rarely. Most ITX cases top out at 240mm. If you want 360mm, look for an ATX or large mid-tower. |
| How much does a 360mm AIO weigh? | 360mm radiators weigh 1.2-1.8kg with fans. Make sure the bracket is sturdy — sagging can damage the CPU block over time. |
